SCARA robot - fast, flexible and configurable

Ideal for simple robotics and assembly tasks

The igus® SCARA robot for fast, flexible use. Typical application areas include assembly and joining tasks in the electronics industry. In most cases, it is used for loads of up to 3kg.

  • 4 DOF (degrees of freedom)
  • IP 44-version available
  • Cycle times from 3 seconds
  • Stepper motor technology with encoder
  • Fully integrated into the igus® Robot Control software
  • Robot variants available with or without housing
  • Splash-proof variants available

Would you like more information about the igus® scara robot?

Contact an expert

SCARA robot options

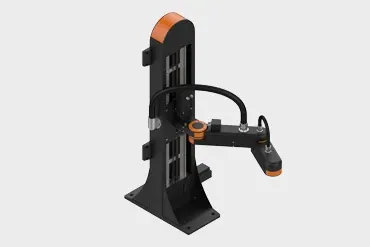

SCARA robot, 4 DOF with full fairing

SCARA robot, 4 DOF with full fairing
  • Payload: 20 N
  • Range: 560 mm
  • Speed: 30 picks/minute
Visit the shop

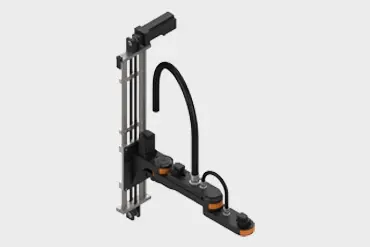

SCARA robot, 4 DOF without fairing

SCARA robot, 4 DOF without fairing
  • Minimum service life: ten million cycles
  • Reach in Z-axis: 500mm
  • Payload: 20 N
Visit the shop

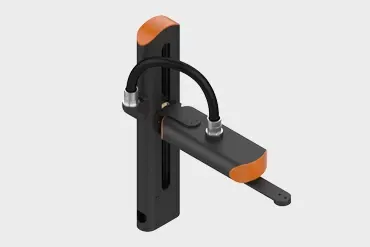

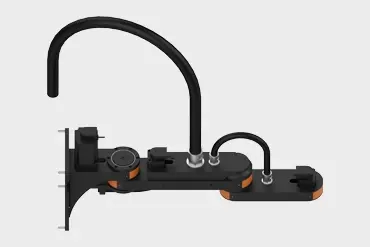

SCARA robot, 3 DOF, robot arm

SCARA robot, 3 DOF, robot arm
  • Degrees of freedom: 3
  • Speed: 30 picks/minute
  • Range: 560 mm
Visit the shop

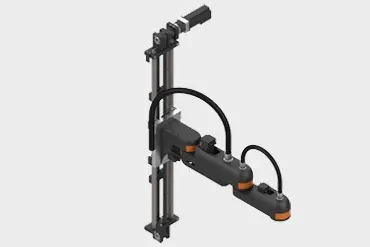

Scara robot, 4 DOF, Size L

  • Payload: 30 N
  • Range: 600 mm
  • Reach along the Z-axis: 3000 mm
Visit the shop

Scara robot, 3 DOF, size S

  • ideal for laboratory applications
  • Compact design
  • Can lift up to 0.5kg
Visit the shop

Alternative option

  • Not sure the Scara robot will work for your application?

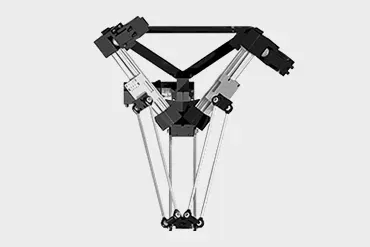

  • Have a look at our delta robot range
Find out more

Tech facts about igus® SCARA robots

icon strength

Up to 2kg payload

icon reach

Up to 560 x 500mm reach

icon DOF

Up to 4 degrees of freedom

icon speed

Speed max. 25 picks/min

icon repeatability

Repeatability: ± 0.5mm

icon temperature

Protection class IP45

Low Cost Automation

LCA Applications for scara robots

More than 8,000 individual solutions per year! Visit our low cost automation overview.

Find out more

Download current catalogue

News HMI 2021

You can find all Low Cost Automation innovations at a glance in our interactive catalogue.

Download now

Shop low cost automation

shopping icon

Discover a variety of products and solutions for your problems in our online shop.

Visit the shop

Robot Control Software (iRC)

Benefits:

  • 3D Surface
  • Intuitive operator control
  • Axis linear movements
  • Connection via Ethernet
  • Easy-to-maintain DIN rail modules
  • Control system for robotic arms, gantries & delta/SCARA robots
  • Free of charge Software

Scope of supply: igus® Robot Control system and software, 24 V power supply unit, connecting cable.

Also necessary: Windows PC, power supply unit, gripper, safety-relevant components.

More about the Robot control
iRC image
