Energy chains Wiki
The energy chain, also known as e-chain® is a machine component that guides and protects flexible cables and hoses. Its protection reduces downtime and increases the service life of cables and hoses.
Customers can save time and money when using igus® energy chains.
igus® energy chains are already being used in a multitude of applications around the world – from beverage dispensers to steelworks.
More than 400,000 customers worldwide from 50 branches of industry use igus® energy chains.
Definition of Cable Management
Cable management is the protecting and guiding of dymanic cables in modern machinery. This is achieved byselecting the right type of energy chain for you application. Choosing the right energy chain for your cable management is easy with igus product finder tool. Just enter your requirements and the system will find it for you. The cable management of your machinery is important as moving cables need to be protected from wear and tear and sometimes ardous environments.
Design energy chains easily

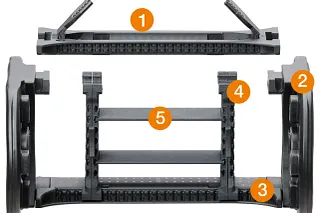

Energy chain elements
An energy chain consists of multiple interconnected chain links. The energy chain is closed off with mounting brackets on both sides. A chain link has the following elements:
- Upper crossbar (for tubes: lid)
2. Side element – inner and/or outer side link
3. Lower crossbar (for tubes: bottom)
4. Separator for vertical separation
5. Partial shelf for horizontal separation
Identify the part number of your chain link
Structure of the part number for two-part energy chain of the R2.1 series
Original part identification
How do you recognise an e-chain® from igus®?
- All individual parts are labelled with the respective part number
- All individual parts have a igus® logo
- Date stamp
- Material stamp
- QR code (if available) that leads to the igus® website
If you are not sure, take a photo in which the following features are clearly recognisable and then send us an e-mail:
- Part number
- Date and material stamp
Individual parts for the E4 series
Outer bracket series E4.38L
Outer bracket E2.26.01
Selection chain link E2.38.65
Outer bracket E4.64L.01
Outer bracket E2.48.01
Outer bracket series E4.48L
Selection of chain base R2.48
Selection of chain base R2.75
Selection of chain base R2.40
Selection of chain base R2.26
Selection of opening bar C824
Why Choose igus® Energy Chains?

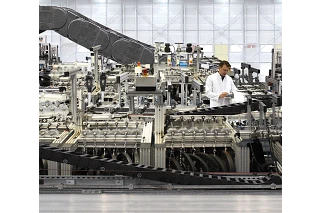

- Proven Reliability: Backed by decades of research and rigorous lab and field testing.
- Smart Design:
- Lightweight & Modular: Flexible and easy to configure.
- High Strength & Quiet: Ideal for demanding, noise-sensitive environments.
- Tool-Free Access: Quick cable installation and maintenance.
- Efficiency & Longevity:
- Low Maintenance: Minimizes downtime and costs.
- Fast Setup: Intuitive design for easy installation.
- Predictable Lifespan: Smart tech enables proactive maintenance.
- Sustainable Innovation:
- Eco-Friendly Materials: Designed for recyclability.
- Recycling Program: Return used chains to reduce waste and conserve resources.
