  1. Home
  2. Linear guides

drylin® W profile guides

In a comprehensive modular system, the drylin® W profile guides offer the largest product diversity within the drylin® family. The series of linear profile guides combines the modular advantages of other drylin® type series, which allows very easy assembly while maximising installation space utilisation. Over 25 different rail designs ensure maximum design freedom.
The use of the drylin® hybrid roller bearings is possible for very low driving forces, with single or double rollers used in the bearings. They sit captive on the rail – transverse and abuse forces are easily absorbed by sliding elements.
more
less
Change your bearing now
Change your bearing now

Up to 40% more cost-effective than recirculating ball bearing guides!
Expert system linear guides
Expert system linear guides

System selection & service life calculation of linear guides.

Products

List
Tile

Number of products: 116

drylin® W-Econ double rail WS-CA
drylin® W-Econ double rail WS-CA New
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10/16/20 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Double Rail
  • Material: Aluminium
  • Rail profile: Round

53.85 USD/m

To the product page
drylin® W-Econ single rail WS-CA
drylin® W-Econ single rail WS-CA New
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10/16/20 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Single Rail
  • Material: Aluminium
  • Rail profile: Round

58.95 USD/m

To the product page
drylin® W double rail WS
drylin® W double rail WS
  • Design: Double Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

44.42 USD/m

9 ready for shipping in 24 - 48 hours
5 ready for shipping in 3 - 4 working days
To the product page
drylin® W single rail WS
drylin® W single rail WS
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

45.82 USD/m

6 ready for shipping in 24 - 48 hours
2 ready for shipping in 3 - 4 working days
To the product page
drylin® W complete slide system WW
drylin® W complete slide system WW
  • Design: round
  • Material sliding element: iglidur® J200
  • Material: Die-cast zinc

37.94 USD/Pc.

21 ready for shipping in 24 - 48 hours
To the product page
drylin® W single rail WS-ES
drylin® W single rail WS-ES
  • Design: Single Rail
  • Material: stainless steel 1.4571
  • Rail profile: Round

Upon request

To the product page
drylin® W pillow block WJ200UM-01
drylin® W pillow block WJ200UM-01
  • Material: Die-cast zinc
  • Material sliding element: iglidur® J200

5.25 USD/Pc.

6 ready for shipping in 24 - 48 hours
2 ready for shipping in 3 - 4 working days
To the product page
drylin® W complete slide system WW-HKA
drylin® W complete slide system WW-HKA
  • Design: round
  • Material sliding element: iglidur® J
  • Material: Die-cast zinc

69.90 USD/Pc.

6 ready for shipping in 24 - 48 hours
10 ready for shipping in 3 - 4 working days
To the product page
drylin® W double rail WSX
drylin® W double rail WSX
  • Design: Double rail high profile
  • Material: Aluminum, hard anodized
  • Rail profile: Round

72.61 USD/m

3 ready for shipping in 24 - 48 hours
To the product page
drylin WWC mono-slide carriage
drylin WWC mono-slide carriage
  • Design: square
  • Material sliding element: iglidur® J
  • Material: Aluminium

51.94 USD/Pc.

21 ready for shipping in 24 - 48 hours
To the product page

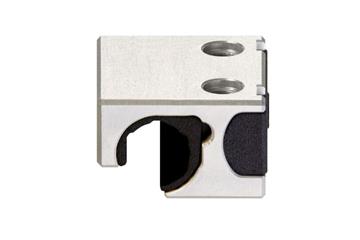

drylin® W pillow block WJ200UMA-01-AL
drylin® W pillow block WJ200UMA-01-AL
  • Fast bearing change without disassembly
  • Smart maintenance directly on the rail
  • For single, double and high profile rails round ø 10 mm
  • Material: Aluminium
  • Material sliding element: iglidur® J200

24.59 USD/Pc.

3 ready for shipping in 24 - 48 hours
To the product page
drylin® W double rail, WSPC
drylin® W double rail, WSPC
  • Design: Double rail high profile
  • Material: Carbon
  • Rail profile: Square

Upon request

1 ready for shipping in 10 working days
To the product page
drylin® W complete slide system WW-SL-HKA
drylin® W complete slide system WW-SL-HKA
  • Design: round
  • Material sliding element: iglidur® J
  • Camera carriage 3/8" threaded hole
  • Material: Die-cast zinc

86.30 USD/Pc.

13 ready for shipping in 24 - 48 hours
To the product page
drylin® W pillow block WJ200UM-01-AL
drylin® W pillow block WJ200UM-01-AL
  • Material: Aluminium
  • Material sliding element: iglidur® J200

12.94 USD/Pc.

4 ready for shipping in 24 - 48 hours
To the product page
drylin® W single rail WSQ
drylin® W single rail WSQ
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Square

33.95 USD/m

7 ready for shipping in 24 - 48 hours
2 ready for shipping in 3 - 4 working days
To the product page
