drylin® Q square guides

drylin Q square guide

Torque-resistant, flexible and a large number of mounting options

drylin® Q linear square rail offers a great degree of flexibility in design. Individual housing options such as iglidur polymer bearings as well as adjustable complete housings with and without manual clamping are available. The tough aluminium profile is very light thanks to its hollow design.
At the same time, the hollow chamber is suitable for feeding though supply lines. There are extensive mounting options that include slot nuts, installation size 20 can likewise be combined with all 20/20 aluminium profiles.

  • 100% lubrication-free
  • Torque-resistant
  • Resistant to dirt
  • Low vibration and quiet
Visit the shop

The components of drylin Q

Square guides

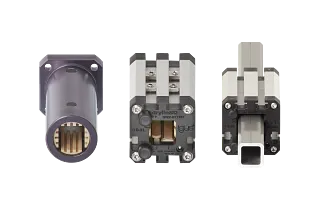

drylin® Q square guide
  • Torque-resistant
  • Very light aluminium hollow profile
  • Many mounting options
Visit the shop

Linear carriage

drylin® Q linear carriage for square guide
  • Unsupported carriage options
  • Lateral fastening options
  • Manual clamp optional
Visit the shop

Pillow blocks

drylin® Q pillow block for square guide
  • Closed aluminium housing
  • Torque absorption up to 3Nm or 10Nm
  • Torque-resistant sliding elements
Visit the shop

Accessories for drylin square guide

drylin Q shaft end support

drylin® Q shaft end support
Visit the shop

drylin Q end cap

drylin® Q end cap
Visit the shop

Other drylin Q accessories

Other drylin® Q accessories
Visit the shop

Why choose drylin® Q square guides?

torque-resistant icon

Torque-resistant

The square design makes it impossible for the carriages to twist

mounting icon

More flexibility

Thanks to a large number of mounting options on all four sides of the carriages

precision icon

High precision

Thanks to adjustable bearing clearance

low-vibration quiet icon

Quiet and low vibration

The design allows the carriages to run quietly and with little vibration

force absorption icon

Flexible absorption of forces

drylin Q square guide allows forces to be absorbed from all directions

dirt-resistant icon

Resistant to dirt

Lubrication-free sliding elements make drylin Q resistant to dirt and saves cleaning costs

Lubrication-free square linear guide

  • 100% lubrication-free
  • Torque-resistant
  • Adjustable bearing clearance
  • Forces absorbed from all directions
  • Insensitive to dirt
  • Low vibration and quiet
  • Many mounting options
Visit the shop
