Energy chain configurator
Quickly design ready-to-connect energy chains online
With the "e-chain expert" energy chain configurator, you can put together your customised, ready-to-connect energy chain system in just a few steps.
► Quick and easy online design
► Display price, service life and delivery time
► Share the current processing status with other people
Ready-to-connect energy chain system in 90 seconds*

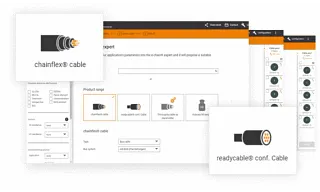

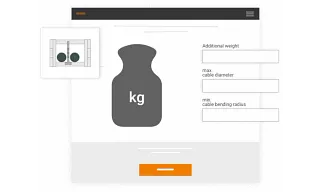

Select cables or harnessed cables by type and manufacturer or start with the filling weight

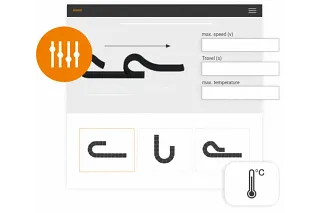

Application parameters
The next step is to select the type of installation and enter the required speed and acceleration as well as the travel and environment of the application.
Selecting the energy chain
The optimum energy supply is calculated and displayed according to price per metre. In the first step, select your system and then a suitable series.
Determine service life
The self-learning automatic filling system works out the ideal case for your selection, and the service life of the energy chain is calculated in double strokes.
Configure interior separation
Use this configurator to fill your energy chains quickly and easily. With parts list and 3D CAD model to download.
Accessories
In the energy chain configurator, you can optionally add accessories such as mounting brackets, trough and strain relief.
Result
Here you get an overview of all components, a total price and the estimated delivery time. To go to the shopping cart, simply click on "Add to shopping cart".
You can also download a free 3D CAD model of the selected energy chain, save the configuration and download the drawing and parts list as a PDF.
*Configuration via the fill weight, as an unsupported application with standard interior separation and without guide trough
