Components for SRU & shuttle systems

Storage systems must work reliably, often around the clock. In order to store and retrieve loads quickly, transfer trolleys (also called cross transfer or shifting trolleys), shuttle systems and storage and retrieval units (SRU) are used in high-bay warehouses and automated small parts warehouses. For the safe supply of signal and energy and trouble-free movement of these systems, igus® offers maintenance-free and durable energy chains, cables and bearing components.

Our energy supply systems are developed for horizontal and vertical movements with high dynamics, require little installation space and ensure greater energy efficiency thanks to their lightweight construction.

Would you like more information about the range of products suitable for SRU & Shuttles? Our experts will be happy to get in touch with you.

Contact an expert
The specialist for warehousing systems and material handling, SIVAplan GmbH

Selected igus® products for SRUs & shuttle systems

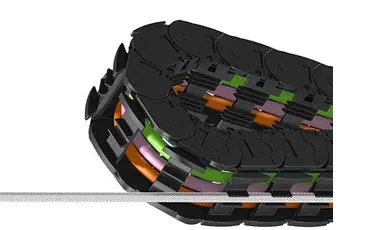

Energy chain with steel cable floor guide

e-chain autoglide 5
e-chain autoglide 5
  • Energy, data, air and liquids in one system
  • 4m/s speed, 80m travel
  • 88% shorter assembly time compared to aluminium trough
  • Find out more information

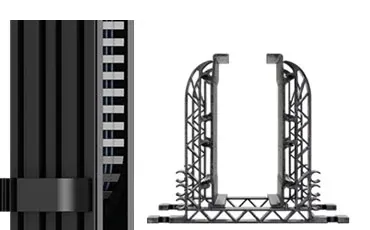

Vertical guide trough for smallest installation spaces

e-chain guidelite ECO
e-chain guidelite ECO
  • The top alternative to busbar systems
  • Very light - made of solid iglidur® material
  • Very safe –  no exposed electrical conductors
  • Very cost-effective acquisition and installation
  • Find out more information

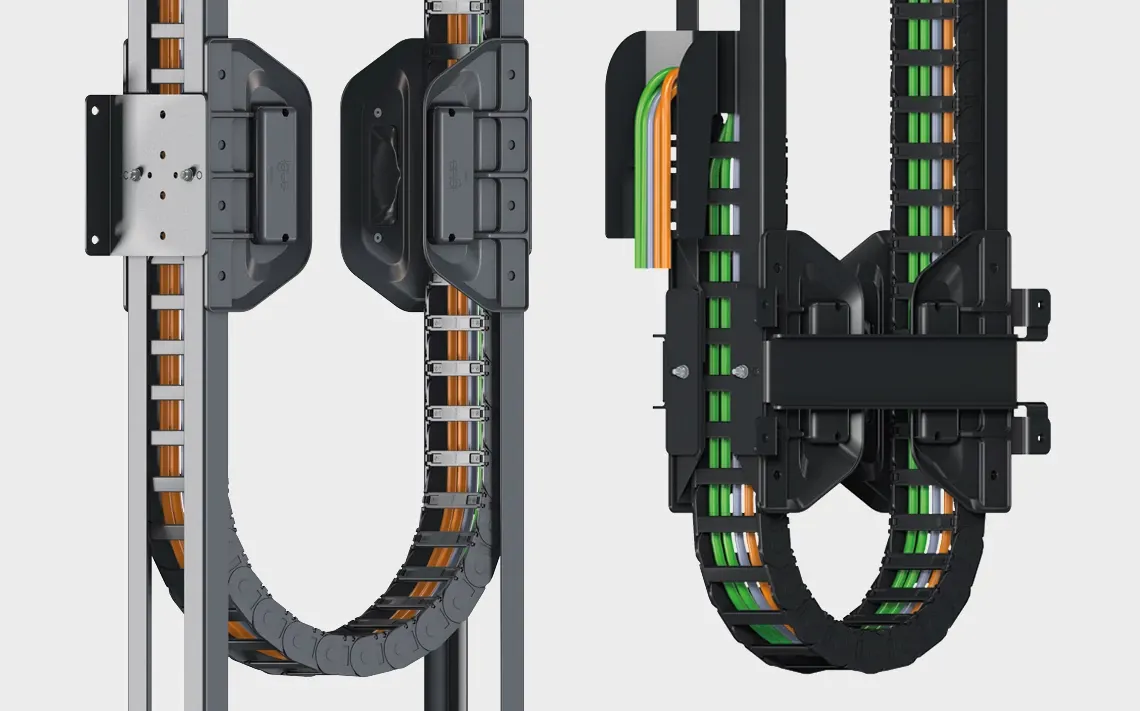

Vertical guide trough options/ systems

e-chains guidelok slimline P and P.S
e-chains guidelok slimline P and P.S
  • For hanging systems up to 50m
  • Easy access for servicing
  • Up to 80% trough and  save costs and weight
  • Other material options available
  • Find out more information

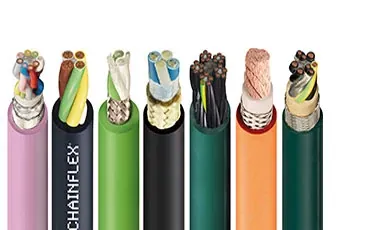

Cables for motion

chainflex cables
  • Developed for maximum load
  • Suitable for very tight bend radii and cold and abrasive environments
  • Up to 36-month chainflex® guarantee
  • A range of cable options available
  • Find out more information
Visit the shop

Made to measure

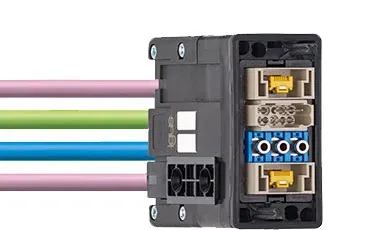

Module Connect
Module Connect
  • 1 connector module instead of many individual connectors
  • Up to 50% lighter than conventional rectangular connectors
  • 100 plug inserts to choose from
  • Find out more information

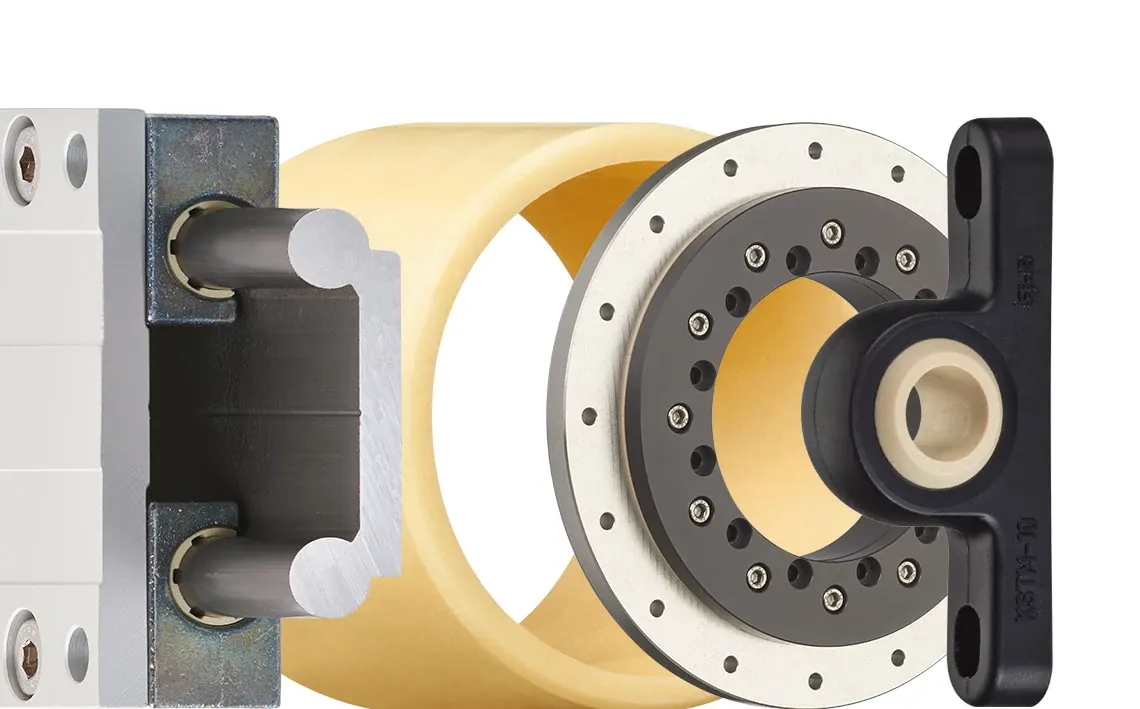

Lubrication-free bearing technology

dry-tech bearing technology: linear bearings, plain bearings, slewing ring bearings, spherical bearings
Visit the shop

White paper

Industry manager Christian Strauch explains the exclusion criteria for choosing cable guidance systems in material handling.

Maintenance-free energy transmission in SRU lanes
How can machine parts work dynamically over long distances and still be reliably supplied with electricity in a maintenance-free manner?

This white paper deals with e-chains and busbar systems for cable guidance in storage and retrieval units (SRUs), indoor and outdoor cranes, electric overhead railway tracks, electric trains, and cross transfer carriages (CTCs).

Download the white paper now
Where can smart products prevent bearing failures? Watch the video to find out more.

Avoid bearing failure with smart plastics

smart plastics enhance reliability in logistics. Their intelligent sensor technology reports the condition and recommended maintenance dates of products such as energy chains and cables.
Your benefits

  • Reduce maintenance costs and eliminate unplanned downtime
  • Extended service life and increased plant efficiency
  • Save time – faster detection of the reason for anomalies

White paper: Benefits and applications of smart plastics"

Find out more about smart plastics

Successfully in use by our customers

guidelok slimline P in storage systems from SIVAplan GmbH & Co. KG

After the testing phase, SIVAplan takes the guidelok system to series production
SIVAplan GmbH & Co. KG uses our energy supply systems to save weight and assembly time. It purchases the guidelok slimline P energy supply systems as readychains. This means that the e-chains are delivered ready-to-install with durable chainflex cables.

Find out more about this application
autoglide 5

Maintenance-free e-chain for SRU lanes at Gebhardt Intralogistics
For a automatic small parts warehouse storage and retrieval unit, the Gebhardt Intralogistics Group uses the autoglide 5 energy chain instead of a busbar system. The system has no guide trough, so it saves space on the hall floor. It also reduces cleaning effort and eliminates maintenance.

Find out more about this application
Material handling applications
Material handling applications

Find more successful applications and other success stories...
Where are our energy chains and cables used for horizontal or vertical travel in storage and retrieval units? Here is a selection of customer applications. We also show how our products are used in other areas of material handling such as in forklifts, AGVs, and conveyor belts.

More information

Brochure material flow

Material handling brochure
Solutions for material flow, automated warehouses, logistics and material handling

Download now
igus installation service

Installation service
Fast installation by our specialised assembly personnel - at short notice and flexible

Send us your enquiry
