50% faster designing with EPLAN macros

Use EPLAN to reduce intelligent maintenance project planning effort.

At EPLAN GmbH& Co. KG, one of the leading products has become established: EPLAN Electric P8 has established itself as the industry standard for electrical design. The typical project planning for a classic switch cabinet, including all control modules, takes approx. 58 hours. This is precisely where EPLAN comes in to enable time optimisation of this project planning effort by up to 50%. The tool supports you in plant design, from end-to-end planning up to production, commissioning, maintenance and repair. Under the motto "efficient engineering", further applications for machine, plant and enclosure construction are also being developed, such as eBUILD, a cloud-based solution from EPLAN, or the EPLAN Data Portal.
This is an online platform for downloading digital product data for the EPLAN applications and thus serves as an integrated, web-based data platform for providing up-to-date device data for direct use in project planning with EPLAN software solutions.

Contact an expert

Core tasks of EPLAN Electric P8

Collecting engineering data
Creating circuit diagrams and schematics
Manual creation of system diagrams
Standardised and template-based work
Automatic completion of machine and system documentation

Where can I find the right EPLAN macro?

The easiest and quickest way to find the right macro is via the igus® online shop.

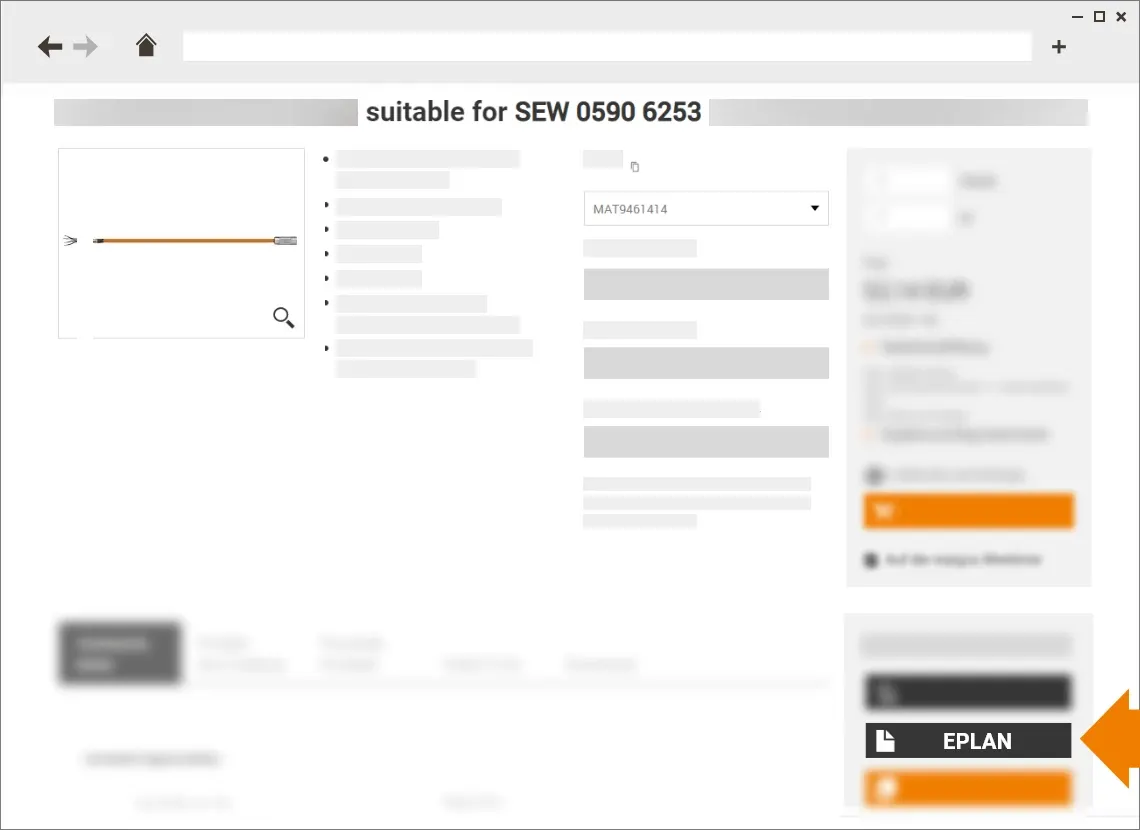

Select the desired readycable® via the igus® search and go to the online shop. If an EPLAN macro is stored for this cable, it will be displayed on the bottom right-hand side of the shop using a black button labelled Load EPLAN data.

The picture on the right shows an example of the drive cable suitable for SEW 0590 6253.

To the online shop

Advantages of using igus® EPLAN macros

Load our readycable® quickly and easily into your electrical design via the EPLAN data portal with the help of EPLAN macros. These macros already contain parts lists and assignment plans.

Use the product finder for drive cables or the shop to find the right readycable® and download the appropriate macro there.

Tech up

Automatic generation of cable plan, parts list and further design documents in CAE system
7 qualities per cable directly available in EPLAN

Cost down

Reduce design time by 50% with ready-to-use EPLAN macros
Designed digitally & can be ordered online immediately

Proof

Prefabricated modules or Markos can be used directly in EPLAN
3.800 m² test laboratory

Sustainability

All harnessed cables are supplied with a perfect fit
Long-lasting cable materials + high-quality connectors + machining = guaranteed reliability

Find the right drive cable with ease

Use our free online tool without login
Find the right cable for 38 manufacturers from over 5,000 drive cables with just a few clicks

Siemens Rexroth
Bosch Rexroth
SEW
Lenze
and much more.

To the readycable product finder

readycable® shop - Ready to connect cables

In addition to drive cable, we also offer other ready-to-connect cables

AIDA Standard
cable for robots
cables with HARTING industrial connectors
Network, Ethernet, fibre optic cables, fieldbus cables
Sensor and actuator cables (sensor cable)
Video, vision, bus technology

Shop harnessed cables

Further information on the guarantee

We give a 4-year guarantee on our cables with a clear conscience, because with over 30 years of experience in our 3,800 m² test laboratory and 700 parallel tests, we can make reliable predictions about the service life of our cables.

More about the guarantee

Further drive cables

Here you can find the complete overview of ready-made drive cables from igus®. All with a 4-year guarantee and available directly from stock within 24 hours. Quick and easy to order using the product finder.

Shop drive cable
