iSet Polymer Rotation Module (PRM) | Rotation angle of up to 360°

energy chain system: polymer Rotation Module PRM

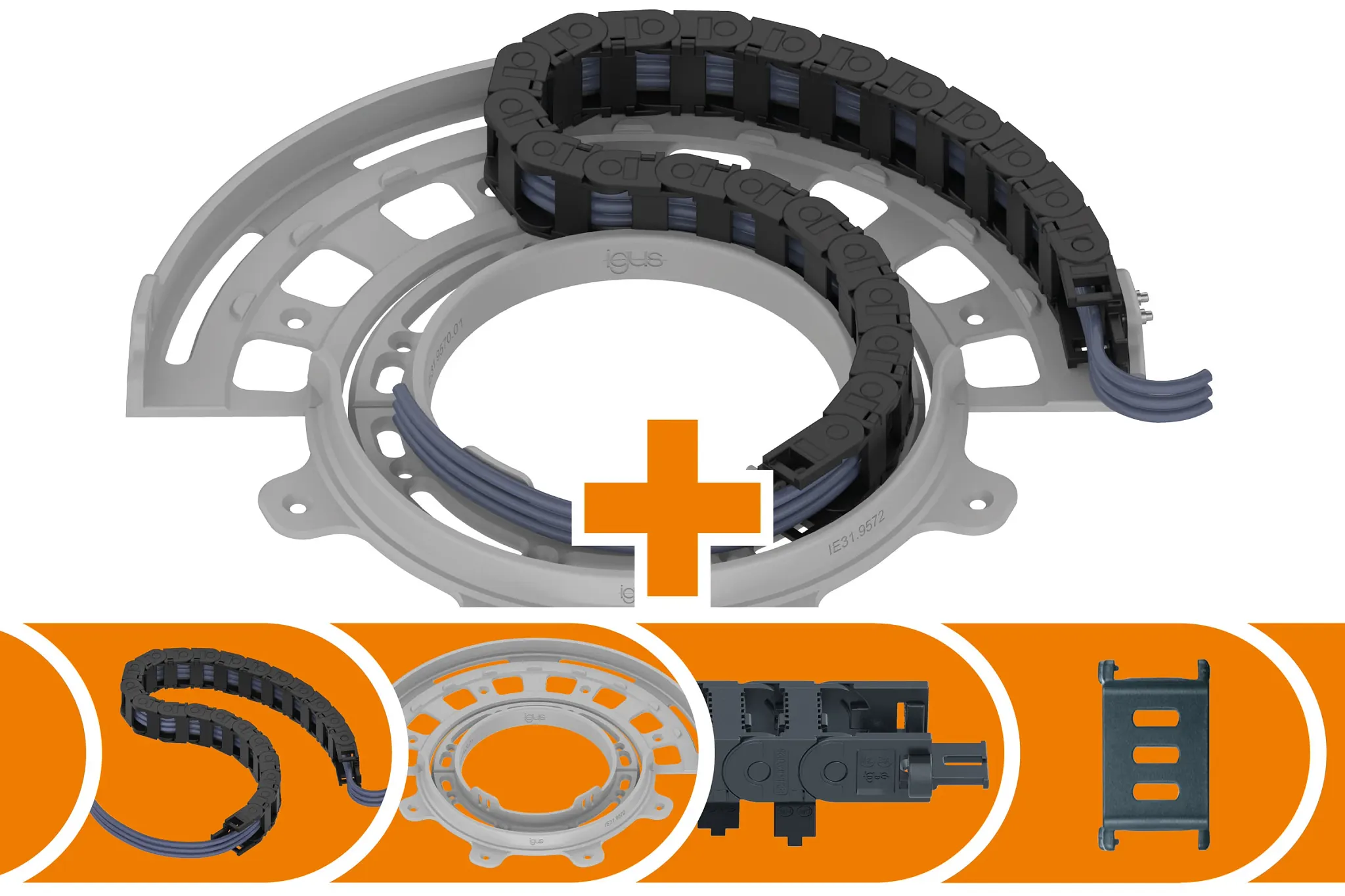

complete set includes:
chain links, separator, mounting bracket, strain reliefs and guide trough without glide bar

dimensions:
rotation angle up to 360
inner height: 10.10 mm
outer height: 15 mm
inner width. 10 mm
outer width: 17.40 mm
bend radius: 18 mm
Overall system height: 22 mm
max. Cable diameter: 8 mm

Applications:
Smaller measuring and handling machines, camera applications

Visit the shopContact an expert

Parts list

Article description

Example pictures

Quantity

Chain links for the outer diameter:
200 mm
300 mm
400 mm
500 mm

E2i.10.40.018/040.0 x 14 chain link
E2i.10.10.028/065.0 x 20 chain link
E2i.15.13.048/075.0 x 25 chain link
E4.21.040.048/120.0 x 23 chain link

mounting bracket for the outer diameter:
200 mm
300 mm
400 mm
500 mm

E2.100.10.34PZ.A1 x 1 set
E2.100.10.34PZ.A1 x 1 set
E2.150.13.34PZ.A1 x 1 set
E4.210.040.1.12.A x 1 set

separator for the outer diameter:
200 mm
300 mm
400 mm
500 mm

E2.10.5.1, 1 - 3x per chain link
E2.10.5.1, 1 - 3 x per chain link
E2.15.5.1, 1 - 3 x per chain link
T2111, 1 - 2 x per chain link

Strain reliefs for the outer diameter:
200 mm
300 mm
400 mm
500 mm

on the mounting bracket
on the mounting bracket
on the mounting bracket
T2113. Z x 2 - 4 piece.

guide trough without glide bar for the outer diameter:
200 mm
300 mm
400 mm
500 mm

IE14.2.200P.XX.01 x 1 piece.
IE14.2.300P.XX.01 x 1 piece.
IE14.2.400P.XX.01 x 1 piece.
IE14.2.500P.XX.01 x 1 piece.

Features and benefits

The PRM rotating energy supply system is a plastic trough for such applications as small measuring and handling machines. The guide is also suitable for camera applications. It requires no sliding contacts and is corrosion-free.

  • No sliding contact and all media in one system
  • Complete system can be ordered with just one number, including energy chain, split guide trough and integrated strain relief
  • Up to 85% weight saving compared to a steel guide trough
  • Up to 70% cheaper than a comparable steel guide trough
  • Protected against corrosion
  • No project planning costs
