iSet basic flizz | Travel 10 - 100m

energy chain system: basic flizz®

complete set includes:
Energy chain series E4.28, mounting bracket, strain relief, separator, enclosed stainless steel guide trough, floating moving end (FTA), mounting kits, adjustable moving arm

Dimensions
inner height: 28 mm
travel: 10 - 100 m
inner width. 52 mm
bend radius: 100 mm

Applications:
Sewage treatment plants, longitudinal scrapers, sand traps, grease traps, waste water treatment, galvanising plants, cranes, plant construction, sluices

Visit the shopContact an expert

Parts list

Article description

Example pictures

Quantity

Energy chain series E4.28

E4.28.052.100.0 x 123 - 1101 chain link

Mounting bracket

916.809.1.052.VS.E.A2 x 1 set

separator

28.1 x 124 - 1102 piece.

Strain reliefs

CFB.001 x 1 piece.

guide trough without glide bar

IE31.3134.E x 2 - 17 piece.

guide trough with glide bar

IE31.3217.E x 1 - 16 piece.

Mounting sets

IE31.3138.E x 5 - 35 piece

fixed end module

IE31.3220. E x 1 piece.

floating moving end (FTA)

IE20.2500.05.ST.05.E x 1 piece.

Adjustable moving arm

IE20.2500.05.ST.05.E x 1 piece

Features and benefits

The basic flizz® is a complete system for mobile energy supply to scrapers, rakes and other sewage treatment and hydroelectric power plants. It consists of an energy chain filled with chainflex cables, guided safely in a weatherproof stainless steel enclosure.

  • Low-maintenance system for travel distances of up to 100 m
  • Protection against weather and dirt
  • No slip ring contacts (e.g. as with motorised drums)
  • Cable or hose can be easily retrofitted at any time
  • Reduce electricity costs - direct drive by scraper, no additional drives required (e.g. as with motorised drums)
  • cost-effective, enclosed complete solution

Application examples

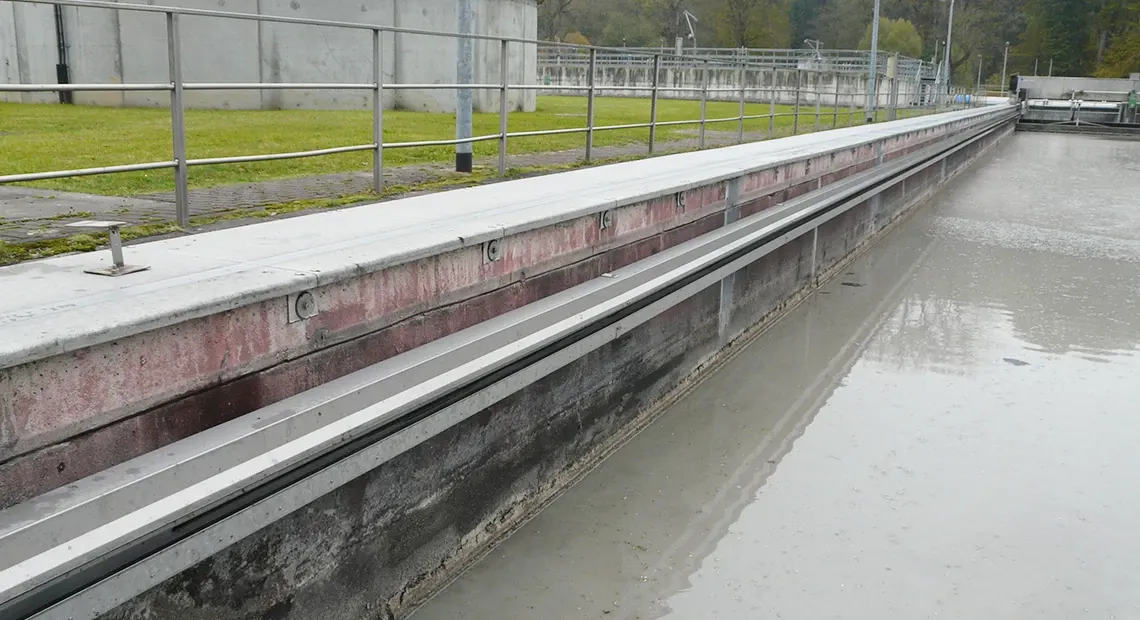

The basic flizz system in the primary clarifier has a length of 58 metres

Primary clarifier in Plauen

In the large sewage treatment plant in Plauen, our basic flizz system reliably supplies the scraper bridge with energy. It replaces a motorised cable reel, and since then the energy and signal supply of the primary clarifier has been running smoothly. The new system - a ready-to-install combination of energy chain and stainless steel enclosure - was specially developed to meet the requirement profile of sewage treatment plant operations.

  • To the application example

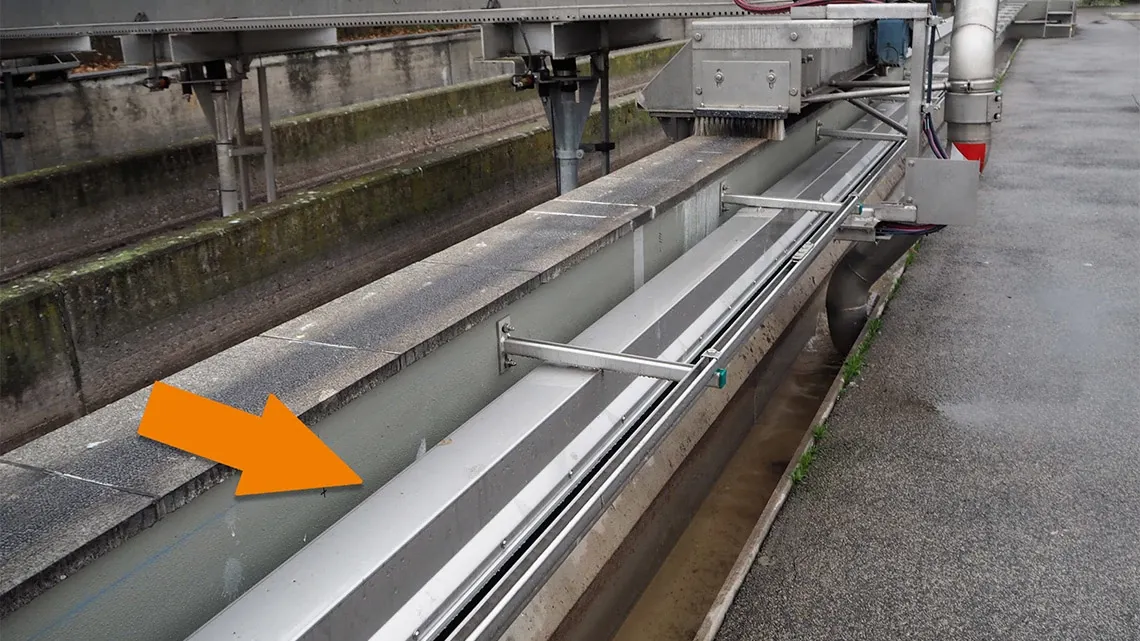

    • basic flizz system in the Bamberg sewage treatment plant

    Sand trap basin of the Bamberg sewage treatment plant

    Increasing process reliability, minimising maintenance effort, transmitting data in a sustainable manner - these are the requirements for the energy supply of the sand trap scraper in the sewage treatment plant in Bamberg. A reliable energy chain system from igus ensures the necessary functional safety.

  • To the application example

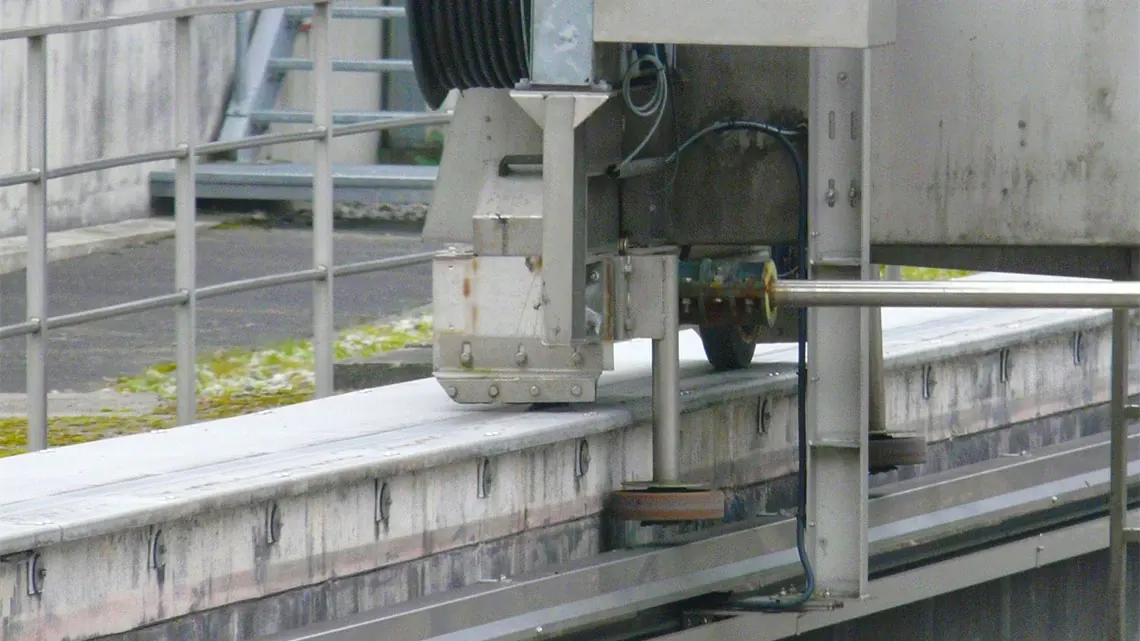

    • basic flizz system including moving end arm

    Primary clarifier at the Plauen ZWAV sewage treatment plant

    In the Plauen sewage treatment plant, the Zweckverband Wasser und Abwasser Vogtland (ZWAV) has replaced the motorised cable reel that used to supply a scraper with energy with the "basic flizz" system from igus. Since then, the energy and signal supply of the primary clarifier has been running smoothly.

  • To the application example
