Continuous panel feed e-spool® flex 2.0

Efficient cable management without slip rings

The e-spool flex 2.0 is a versatile and reliable solution for managing cables in various applications. It features a compact design that allows for easy installation and use in tight spaces. The cable diameters it can accommodate make it suitable for a wide range of industries and applications.

One of the key features of the e-spool flex 2.0 is its feed-through system, which ensures that the cable is always routed correctly and securely. This helps prevent tangling and damage to the cable, ensuring smooth operation and longevity of the system.

Visit the shop
Contact an expert

Drive options e-spool flex

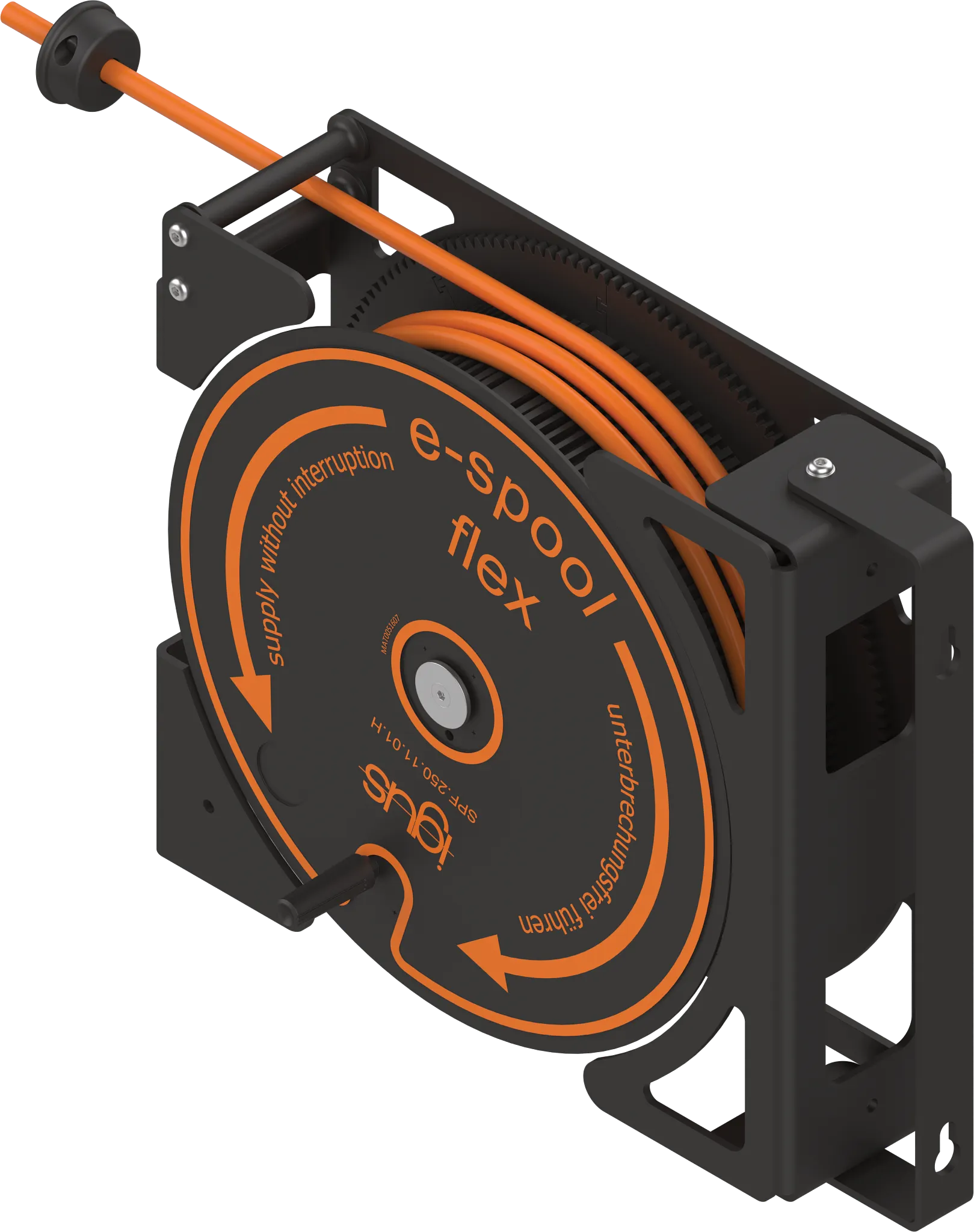

e-spool flex 2.0 with hand crank

Version H: with hand crank
Cable diameter: from 5 to 15mm
Extension length: ≤15m

Visit the shop
e-spool flex 2.0 with retaining spring and locking function

Version SP: with retaining spring and locking function
Cable diameter: from 5 to 15mm
Extension length: ≤15m

Visit the shop
e-spool flex 2.0 with retaining spring, locking function, and retraction brake

Version SB: with retaining spring, locking function, and retraction brake.
Cable diameter: from 5 to 15mm | Extension length: ≤15m

Visit the shop

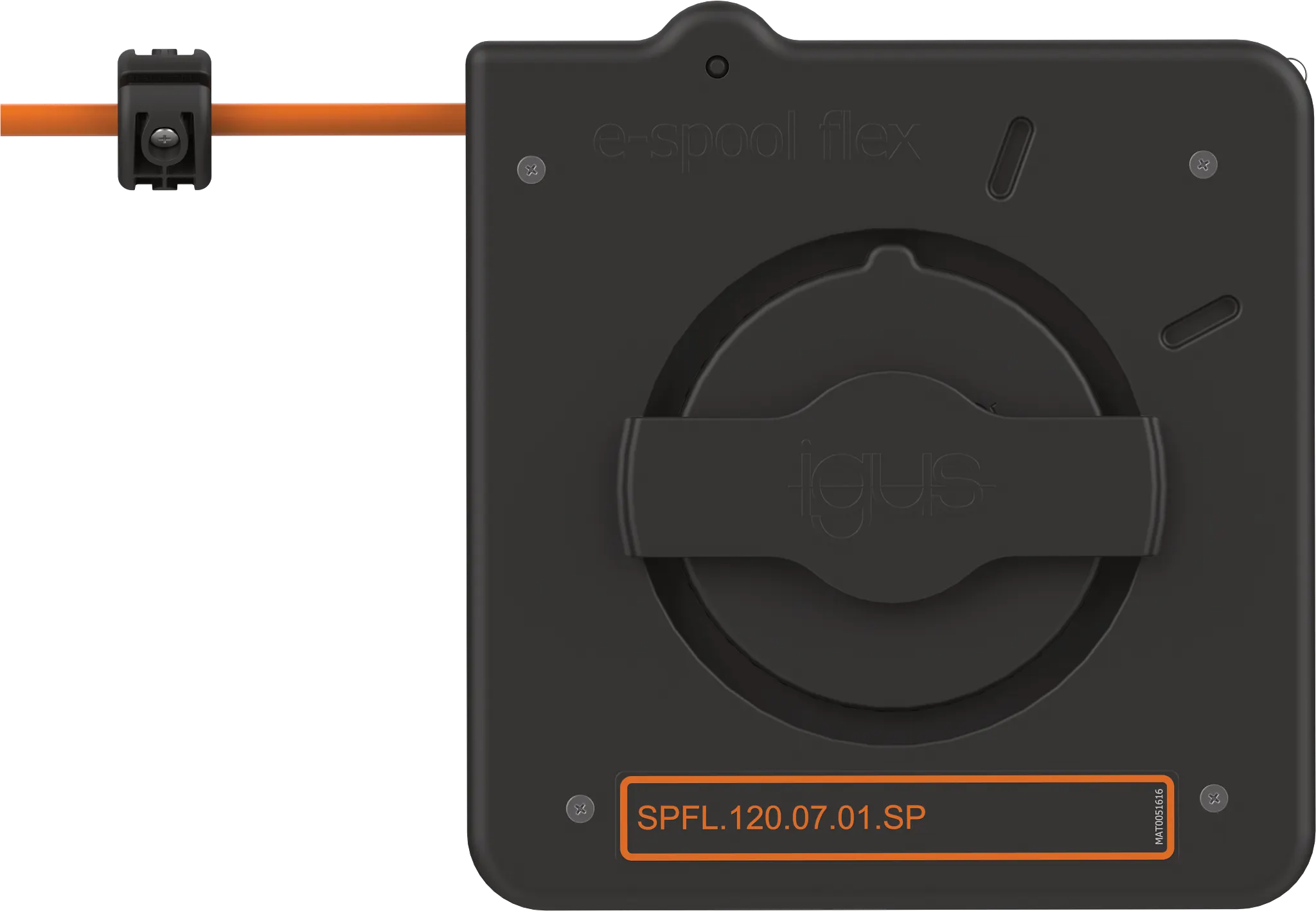

Drive options e-spool flex mini

Version SP: with retaining spring and snap mechanism
Cable diameter: from 5 to 7mm
Extension length: ≤3m

Visit the shop

Version SPL: with retaining spring and ratchet lever
Cable diameter: from 5 to 7mm
Extension length: ≤3m

Visit the shop

NEW: e-spool flex accessories

Now with guide roller and brush attachment (optional)

e-spool flex brush attachment

Brush unit
Brush attachment for cleaning the cable before rolling it up.

e-spool flex guide roller

Guide roller
Idler pulley for "around the corner" extension.

Tech up triangle

Tech up

  • Without interruptions (no slip ring) also for electricity,
    data, liquids and air
  • Space-saving
  • Universal use
  • Constant tensile strain on the cable
  • Locking function of the cable
Cost down triangle

Cost down

  • Favourable price
  • Cost-effective in case of repair
  • Easy replacement of the cable in use, making the system customisable
  • Four configuration levels, customised to the respective customer requirements
Proof square

Proof

Sustainability circle

Sustainability

  • No additional copper components in the system (apart from cable copper)
  • Parts are reusable
  • Less raw material required due to partial repair option instead of total replacement
  • Have your energy chain recycled at the end of its life cycle in the igus chainge recycling programme.

Installation instructions

The illustrated assembly aid enables you to assemble the e-spool flex 2.0 and e-spool flex mini quickly and professionally. Note: Please consider VDE 0298 Part 5 (Current carrying capacity and conversion factors for wound cables) when selecting your cables and when using e-spool flex

e-spool flex installation instructions

e-spool flex with hand crank installation instructions

e-spool flex mini installation instructions

Documentation

Documentation e-spool

Documentation cable drum e-spool flex
This documentation will provide you with all important information about e-spool flex - from technical data to hazard warnings to safety instructions.

Download now
Documentation e-spool mini


Documentation cable drum e-spool flex mini
This documentation will provide you with all important information about e-spool flex mini - from technical data to hazard warnings to safety instructions.

Download now
retractable cable reel

Possible uses for the e-spool flex 2.0

... on industrial robots

retractable cable reel

Possible uses for the e-spool flex 2.0

... in the car repair shop

retractable cable reel

Possible uses for the e-spool flex 2.0

... on platforms

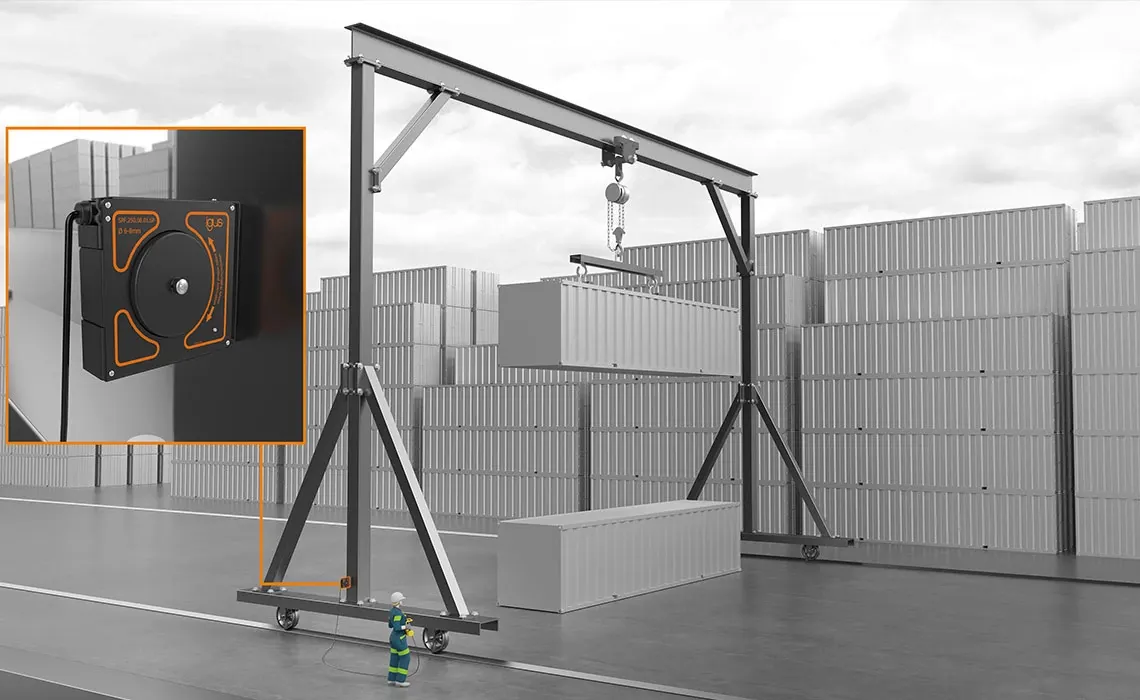

retractable cable reel

Possible uses for the e-spool flex 2.0

... in harbours

retractable cable reel

Possible uses for the e-spool flex 2.0

.. in the warehouse

retractable cable reel

Possible uses of the e-spool flex mini

... at the dentist's

retractable cable reel

Possible uses of the e-spool flex mini

... at charging stations for e-bikes

retractable cable reel

Possible uses of the e-spool flex mini

... in the office

Tested in the igus laboratory

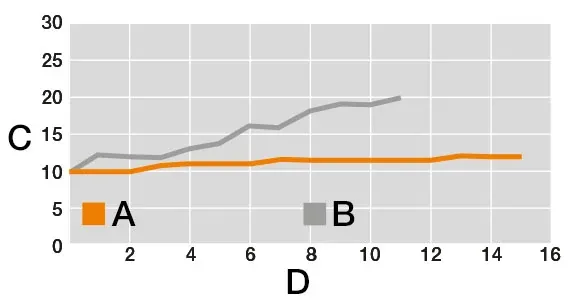

For e-spool flex pull-out forces

Tested e-spool flex pull-out forces

In its test laboratory, the largest in the industry, igus compared the e-spool flex with a competing product. The test evaluated the two products' pull-out forces.

The results showed that the e-spool pull-out forces were about ten newtons, while those of the competing product were almost twice that.

A: e-spool flex
B: Competing product
C: Pull-out force [N]D: Pull-out [m]

For the e-spool flex mini extension length

Tested e-spool flex mini extension length

In its test laboratory, the largest in the industry, igus compared the e-spool flex mini with a competing product. The test evaluated the two products' extension lengths.

The results showed that the e-spool flex mini extension length was about three metres, while that of the competing product was only half that.
