YE.200 energy chain series

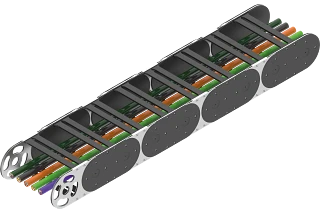

YE 200 energy chain

[Designstudie]
More inner height for extreme loads and maximum stability

Based on the successful YE-product range of igus hybrid chains (best mix of plastic and steel) in a new size with an inner height of 200mm. Thanks to the new steel sleeve stop-dogs (instead of plastic), the e-chain absorbs high forces and offers high stability.

Enquire about YE 200 energy chain
Tech up triangle

Tech up

  • Guide extreme loads with an inner height of 200mm
Cost down triangle

Cost down

  • Guide hydraulic hoses safely with reinforced stop-dogs
Proof square

Proof

  • YE series successful in customer applications with high fill weighs
Sustainability circle

Sustainability

  • Have your energy chain recycled at the end of its life cycle in the igus Chainge® recycling programme. Irrespective of the manufacturer: Chainge.igus.de

Order a free sample

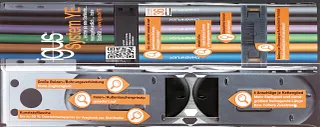

Energy chain sample YE

Order a free sample of YE and see the quality of the product for yourself.

Order now

Realised in practice

YRHD in DWK Drahtwerk
YRHD in DWK Drahtwerk

Hybrid tube YRHD in use at DWK Drahtwerk Köln as a replacement for steel tube
High stability and considerable fill weight - both requirements of the DKW Drahtwerk Köln have led to the selection of the hybrid chain YRHD.108.25.500.0 (tube variant) for implementing the unsupported travel of 12.5m with a fill weight of 28kg/m. The lids and shelves of the energy tube can be opened so that it is possible to add or replace cables later.

YE.42 at Sinopec
YE.42 at Sinopec

Two YE.42 side-by-side hybrid chains replace a steel chain at Sinopec
In steel chains, the built-in hydraulic hoses of this power catwalk application wear out very quickly, so that an alternative was sought. As the YE.42 hybrid chain consists of steel side plates that ensure an unsupported length that is approx. 100% longer (compared to plastic chains of the same size) and as the plastic links that have proven themselves for more than 35 years are used as crossbars, the YE series hybrid chain solves the customer's wear problem.

YE.42 at Genie
YE.42 at Genie

YE.42 hybrid chains for retrofitting a Genie work platform
The YE.42 series with a chain length of 7.5m is used in a Genie work platform. It functioned flawlessly after installation. The engineers on site particularly emphasised the ease of installation. It took much longer to remove the existing steel chain than to install the new YE hybrid energy chain, which was done within an hour in this application.
