Heavy duty industrial applications

Corrosion‑free, robust and reliable: plastic vs. steel

igus® e‑chains® are used in tens of thousands of applications worldwide, guiding and protecting cables and hoses on oil platforms, in steelworks and across a wide range of heavy industrial machinery. Their modular design makes installation straightforward, while their media‑friendly construction allows them to handle large, heavy and stiff cables with ease.

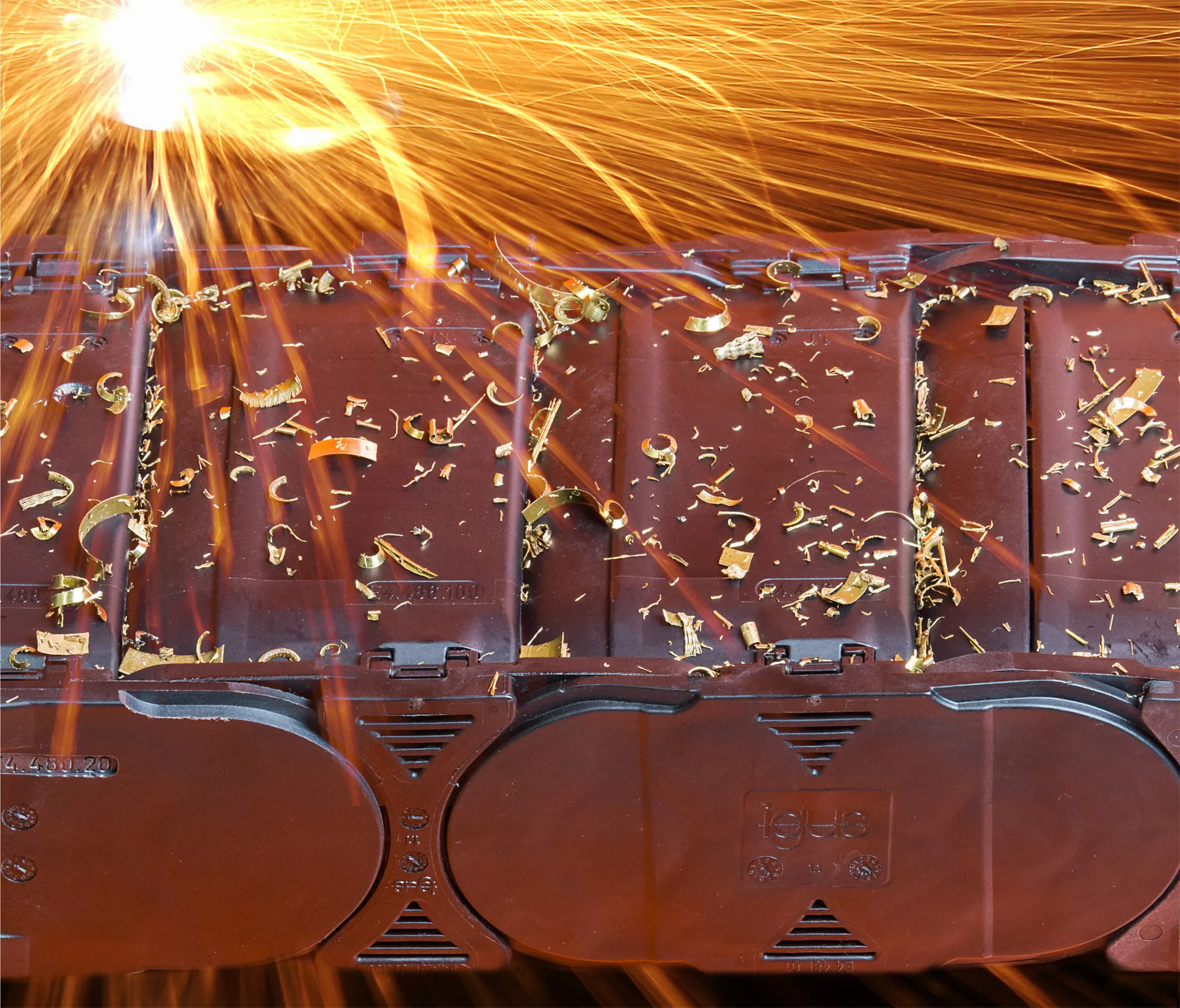

Engineered from high‑performance polymers, these e‑chains® offer exceptional durability and can withstand hot chips at temperatures up to +850°C. In many heavy‑duty environments, they provide a compelling alternative to traditional steel systems thanks to their long service life, resistance to corrosion and reduced maintenance demands.

Key features:

  • Fill weights up to 600 kg/m
  • Completely corrosion‑free
  • Fast, simple assembly
  • Easy to fill and configure
  • Low overall weight
buildTo the configuratorsShop all productslocal_phoneNeed help? Contact us!

Suitable products for heavy machinery plants

iglidur® TX2 plain bearings

TX2 bearings
  • Particularly low wear in heavy-duty areas
  • Up to 3.5 times more wear-resistant than iglidur TX1
  • Good coefficient of wear and therefore a long service life
Visit the shop

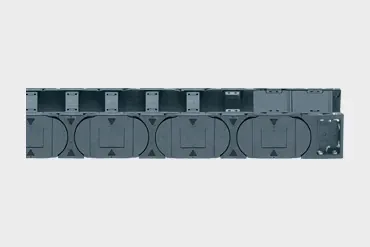

E4 series of e-chains®

  • The E4 series is stronger whichst still having the same or smaller dimensions than previous versions
  • Calculatable service life
  • High stability
Visit the shop

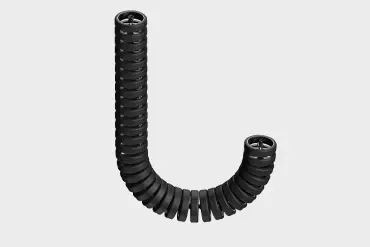

e-loop modular chains

e-loop energy chain
  • Suitable for heavy duty applications
  • Quick assembly
  • Robust
  • Up to 430mm dia
  • Ideal for dirty offshore applications
Find out more

Examples for heavy duty industrial applications

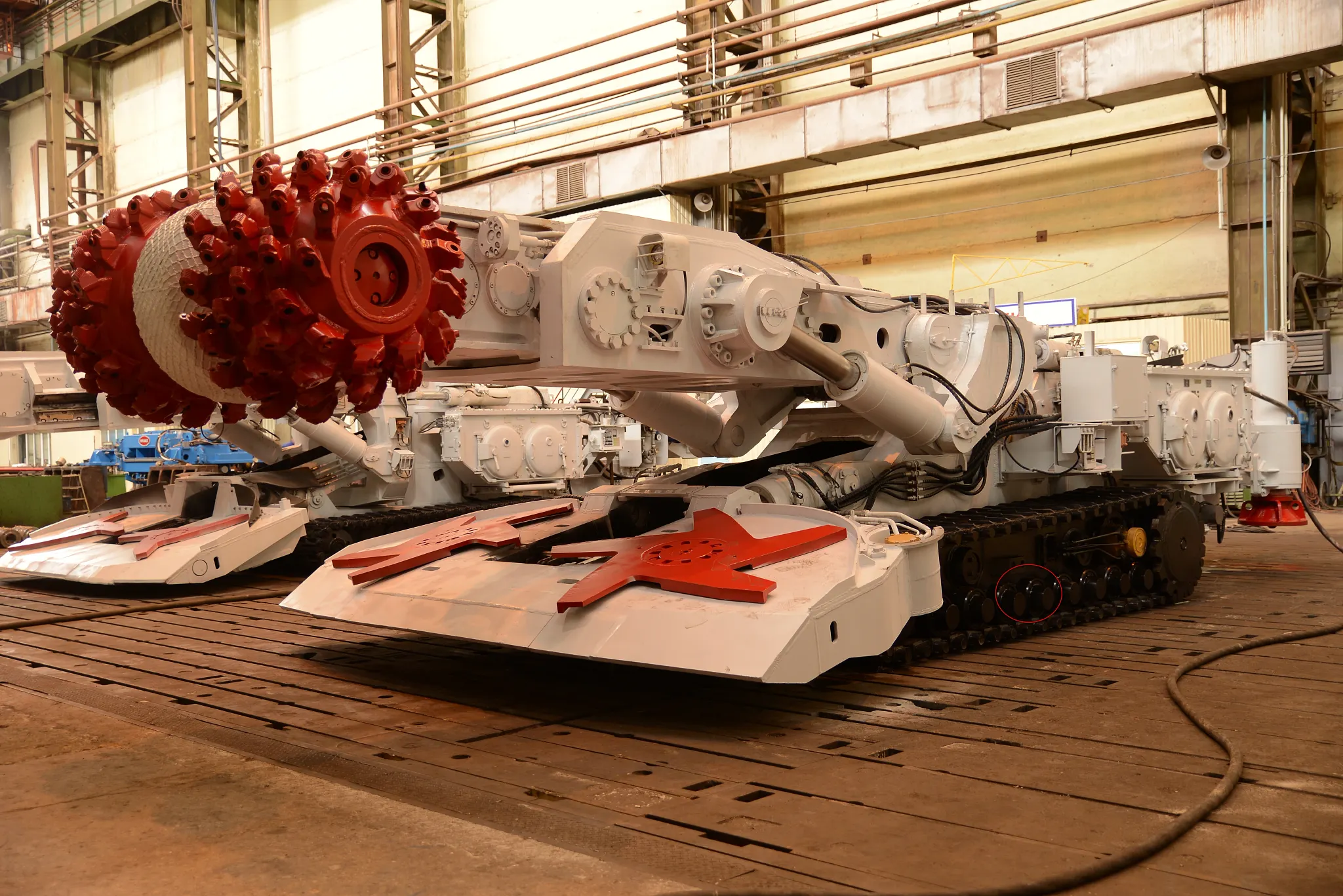

excavator

Bucket wheel excavator

Energy chain system e-loop® is used in the bucket wheel excavator of Holcim for cement production.
The excavator works together with a spreader. Both devices are connected by several single cores with high cross sections. Holcim and igus have installed the new e-loop energy supply system to protect and guide the cables safely. The e-loop was developed for tough and heavy duty applications. It combines the advantages of a polymer energy chain with those of a high-strength pull rope. Inside the e-loop energy chain, the pull rope transfers the pull force to the mounting brackets and the structure.

deep drilling

Deep drilling system TBA

Bauer Maschinen GmbH’s TBA 440 M2 is an advanced deep‑drilling system capable of drilling to 6000 metres with a high level of automation. Designed as a 1000‑ton “walking unit,” it can relocate independently on site, allowing multiple holes to be drilled without dismantling. The drill‑pipe handling system is powered and controlled via igus® E4.1 energy chains, which supply hydraulic, electrical and signal lines.

This mobile design greatly speeds up exploration work and reduces setup time, generating strong market interest. The first unit has already been delivered to South America, with further inquiries coming from North America.

Aluminium Oxid Stade GmbH

Energy chain in open-air storage facility for alumina production

Design and installation of a roller energy chain for outdoor use on a bauxite stockpile - an environment with extremely harsh ambient conditions.

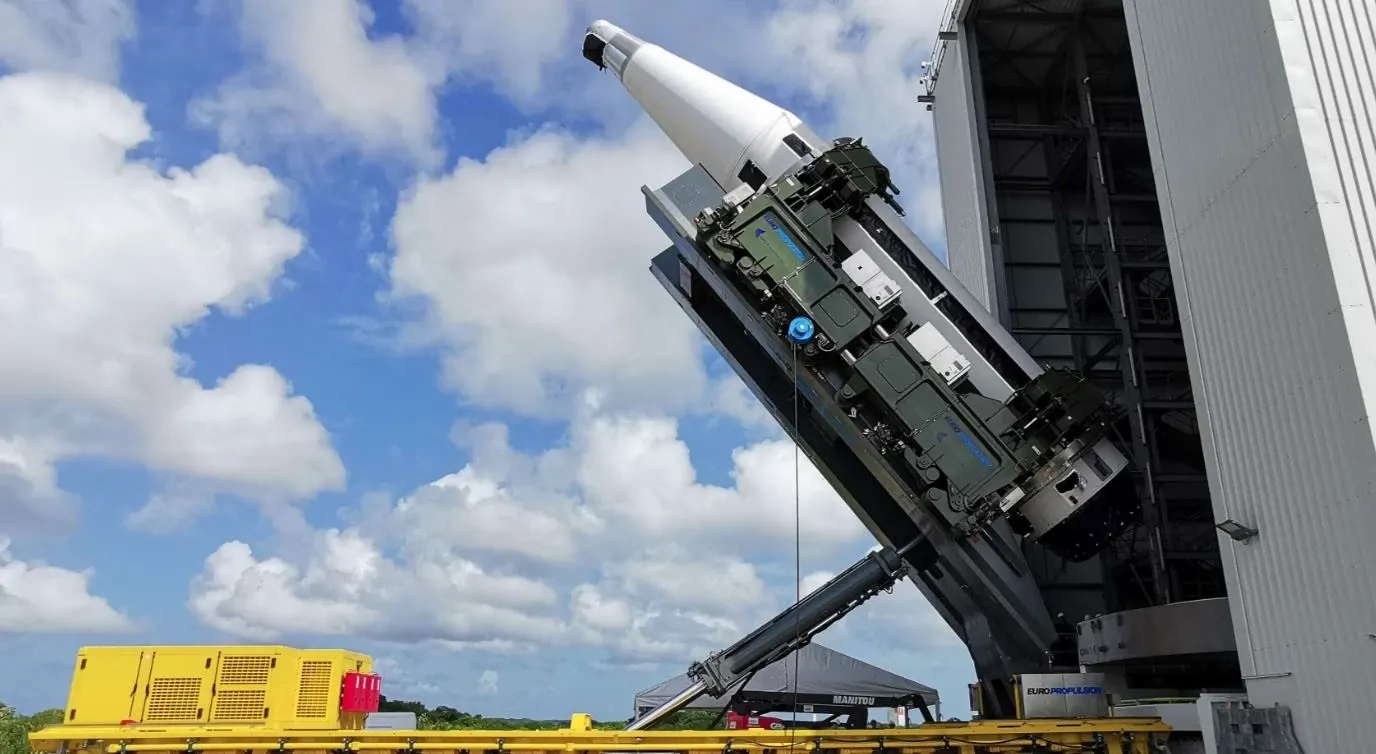

rocket launcher

Rocket launch site

The igus® products used are designed for moving applications in such a way that they have a long service life and are absolutely reliable.

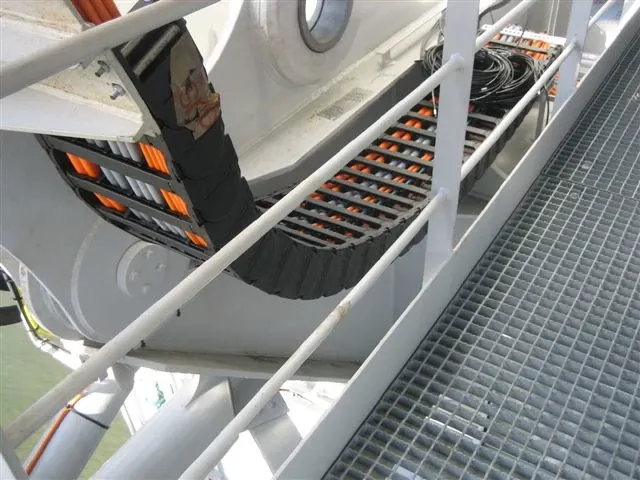

offshore application

Offshore industry

High pressure hydraulic hoses + power cables. Extreme weather environment but this chain delivers and delivers.

stavker

Energy chain for stackers on 615m travel without failure for 10 years

A plastic energy chain travels 615m in length in the Czech lignite-fired power plant in Tušimice. It has been in operation for 10 years without any downtime.

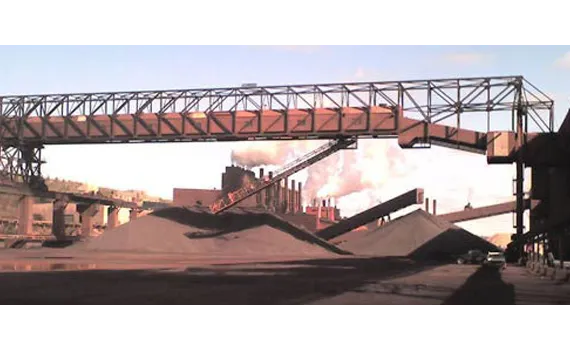

taconite mine

Plastic energy chain on 550-metre travel in bulk handling

Under extreme conditions such as heavy dust and dirt, this low-maintenance plastic energy chain ensures safe operation.

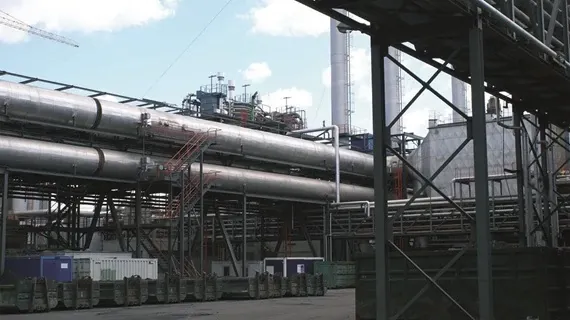

thermal application

Thermal application

igus® roller chain in power plant application: Strong dust, application of the chains in trolley and crane, the crane drive arranged in the opposite direction.

offshore

Offshore industry

High pressure hydraulic hoses + power cables. Extreme weather environment but this chain delivers and delivers.

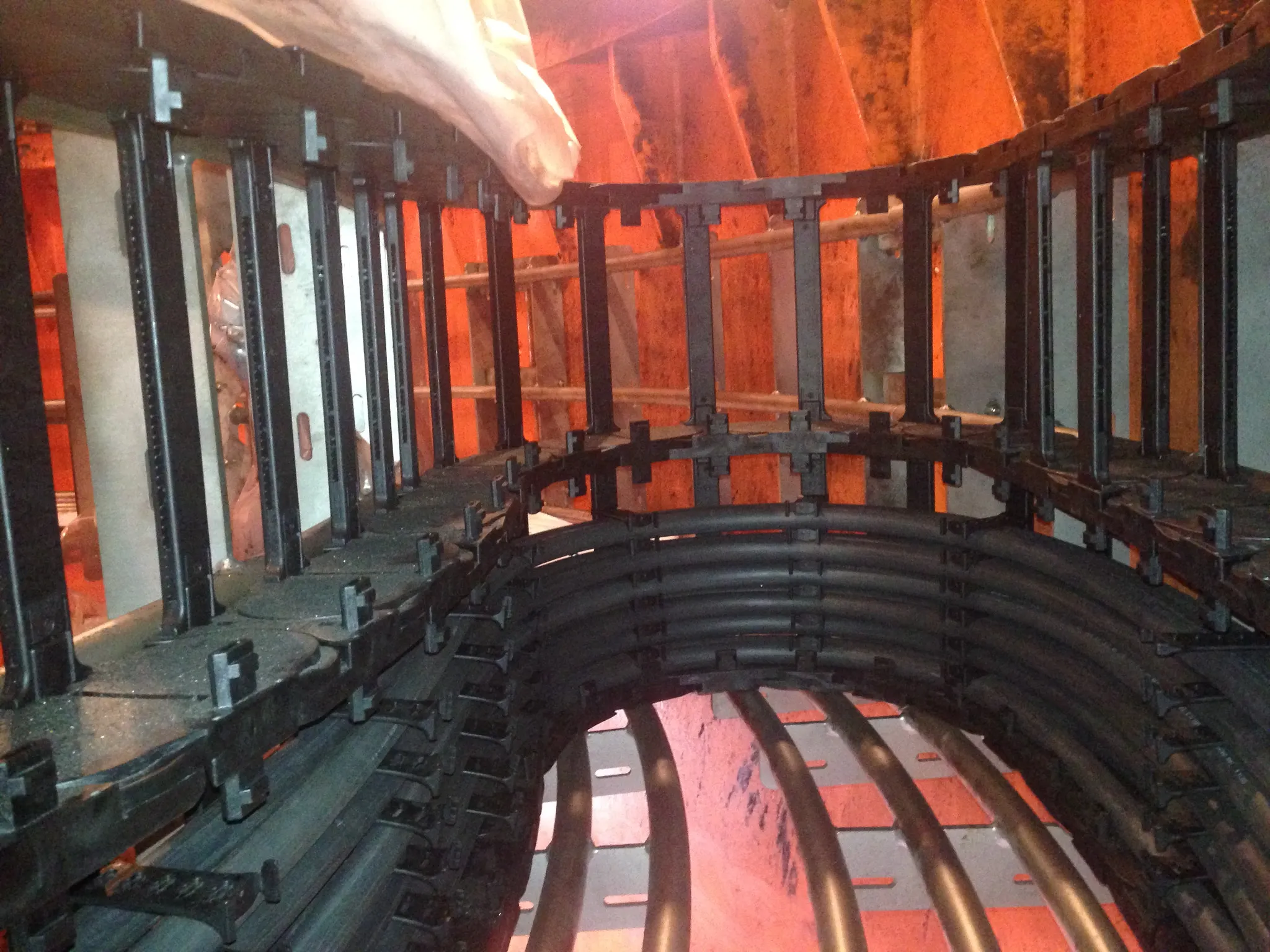

heavy duty applications

Other applications

For more information on the following applications- click on the link

  • Roller energy chain for voestalpine
  • Excavator
  • Heavy Load transporter
  • Zinc electroysis, bathing halls
