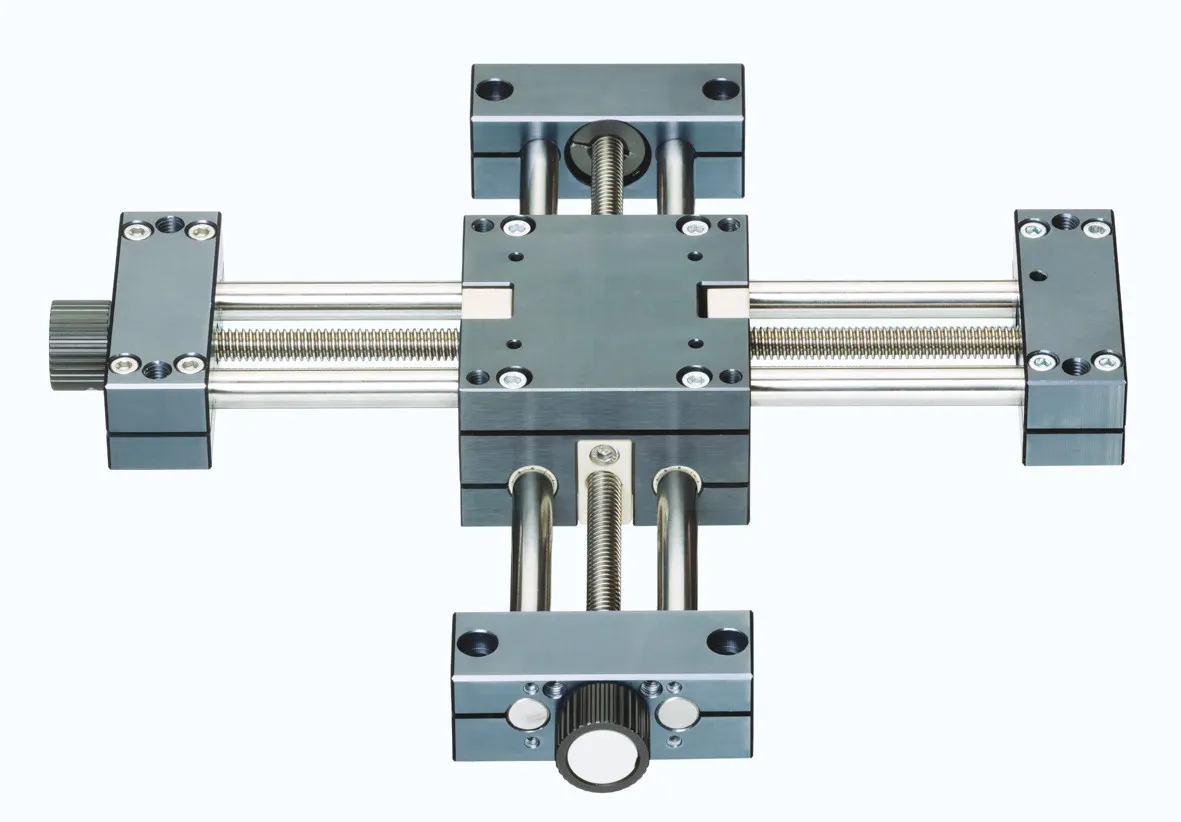

drylin® SHT XY linear tables

High precision, extreme torsional stability

  • Accurate alignment through CNC manufacturing
  • Also available as a preload version (PL)
  • 100% lubrication-free and complete
  • Corrosion-free
  • With trapezoidal thread or dryspin high helix thread
  • Assembly of upper unit with left or right alignment possible
  • Accessories (hand wheel, etc.) available

Would you like more information about drylin® SHT drives or do you need an individual consultation? Our experts will be happy to get in touch with you.

Contact an expert

SHT-XY - XY table installation sizes

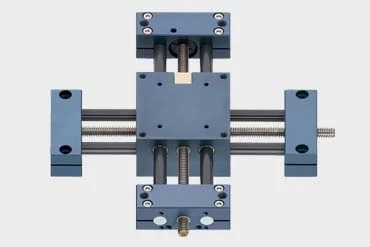

SHT-XY-08-AWM

  • Max. stroke length: 150mm
  • Carriage length: 65mm
  • Shaft material: aluminium
  • Shaft diameter: 8mm
Request a quote

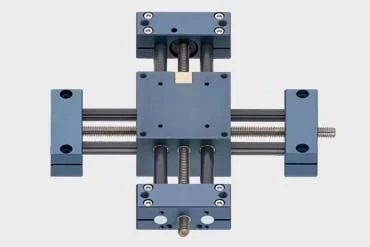

SHT-XY-12-AWM

  • Max. stroke length: 350mm
  • Carriage length: 85mm
  • Shaft material: aluminium
  • Shaft diameter: 12mm
Request a quote

SHT-XY-12-AWM-PL- Spring loaded

  • Max. stroke length: 350mm
  • Carriage length: 85mm
  • Shaft material: aluminium
  • Shaft diameter: 12mm
Request a quote

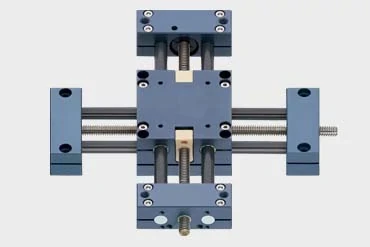

SHT-XY-20-EWM-PL- Spring preload

  • Max. stroke length: 500mm
  • Carriage length: 130mm
  • Shaft material: stainless steel
  • Shaft diameter: 20mm
Request a quote

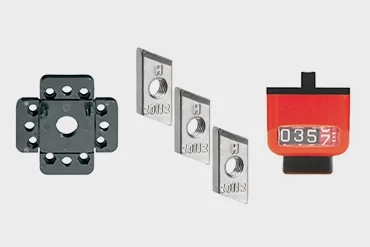

drylin® technical accessories

  • Accessories for manual positioning and format adjustment
  • Assembly and fastening options
  • Stepper and DC motors for electrical drive
Visit the shop

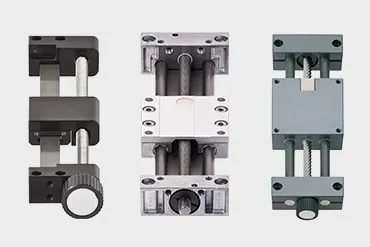

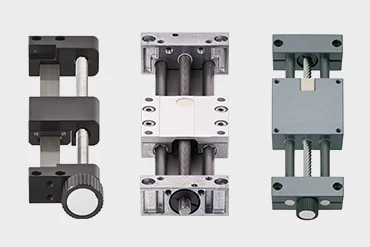

Back to linear system overview

  • Not sure if this is the right module?
  • Need a full overview of the linear drives?
  • Click here to see all the linear drive options available.
Find out more

Product services

Download technical data

Catalogue

Free catalogue extract with all technical data for this product range.

Download catalogue extract now

Request a quotation

Product enquiry

Are you interested in a personalised offer? Then leave us a message!

Send an enquiry now

Free online configurator

Online configurator

Configure individual linear modules to the millimetre yourself. Without registration.

To the drive technology configurator

Technical data

Part No.A, -0,3 [mm]H [mm]E1, ±0,15 [mm]E2, ±0,15 [mm]Basic length lx [mm]Basic length ly [mm]R [mm]f [mm]lt, ±0.1 [mm]tk [mm]ts [mm]tgkt [mm]
SHT-XY-12 8556707314514542230116.6M86.4
SHT-XY-08 654252569696321.515.5105.5M67
SHT-XY-12-PL 8556707314514542230116.6M86.4
SHT-XY-20-EWM-PL 1308610811520220272236159M108.6
Part No.sgd [mm]Tl1 [mm]d1<br /> Standard<br />d1 Alternativel2 [mm]d2 standardd2 Alternativeha1 [mm]ha2 [mm]W, ha2-ha1 [mm]
SHT-XY-12 M612TR10x2 17TR10x2 6h9176h9183820
SHT-XY-08 M58TR6x2/TR6.35x2.54 15.5TR6x2/TR6.35x2.54 5155132916
SHT-XY-12-PL M612TR10x2 17TR10x2 6h9176h9183820
SHT-XY-20-EWM-PL M820TR18x4 26TR18x4-2612h9236340

Assembly information

The y-axis hand wheel can be ordered mounted on the left or right.
Left: SHT-XY-12-AWM-L-200-300 for 200 mm stroke length in x-direction and 300 mm in y-direction.
Right: SHT-XY-12-AWM-R-200-300 for 200 mm stroke length in x-direction and 300 mm in y-direction

Technical options for the SHT series

The following options are available for the SHT-XY product range.

Lead screw stepper motors for drylin SHT-XY tables

Electric drive systems: electric motors from igus

Whether DC, lead screw stepper or EC/BLDC motors: with its wide-ranging motor shop, igus offers the possibility of equipping linear axis systems with the appropriate motor solutions. In combination with drylin linear axes, which can be ordered completely ready for installation and connection, entire handling systems can be configured. With the powerful motors you solve a wide variety of problems in electric drive technology.

  • More about the lead screw stepper motors
    • Bearing material for igus SHT-XY tables

    Bearing materials

    All drylin® drive units bearing points are equipped with lubrication-free­ and maintenance-free igus® high performance polymers. Options include materials for high-temperature applications up to +180°C (iglidur® X, SHT-ES series), and for FDA-compliant environments (iglidur® A180).

    Lead material for igus drylin SHT-XY tables

    Lead screw design

    All drylin® SHT-ES linear modules are delivered with self-locking trapezoidal lead screws made of stainless steel. Hard-coated aluminium is also available upon request. The series can also be configured with stainless steel high helix lead screws (optional). This allows much higher pitches and drive speeds, but without the self-locking feature.
