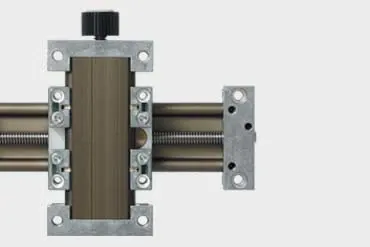

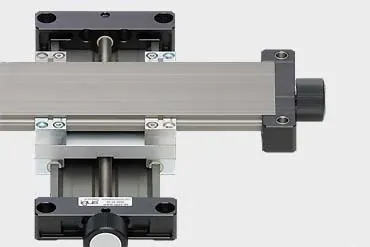

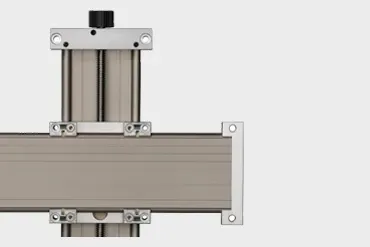

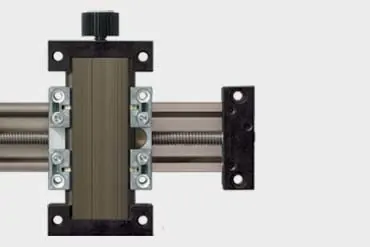

Ready-to-install drylin® SLW-XY tables

Bearing materials

All drylin® drive units bearing points are equipped with lubrication-free­ and maintenance-free igus® high performance polymers. Options include materials for high-temperature applications up to +180°C (iglidur® X, SHT-ES series), and for FDA-compliant environments (iglidur® A180).

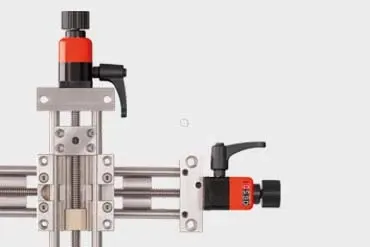

Lead screw clamp

In many applications, a clamping option is also required as an additional safeguard against unintentional adjustment.

• Shaft clamping flange for clamping the lead screw to the position indicator
• Secures the lead screw against inadvertent turning
• Material: polymer housing with aluminium shaft clamp
• Colour: black

Digital position indicator

The electronic position indicator (battery operated) for drylin® linear modules can be freely programmed for the individual thread pitch in each case. Ideal for use with dryspin® high helix threads. LCD display with five digits and special characters, long battery life and easy battery change without removal of the device.

drylin hand wheels

An extensive selection of hand wheels for a wide variety of requirements is available to ship from stock. They range from small, compact sizes up to Ø125 with or without handles and in various configurations.
