Compact toothed belt linear systems
igus® linear modules with toothed belt drives are particularly suitable for applications with long travels where highest speeds with repetition are required. igus® distinguishes the design of the toothed belt axes in three construction types:

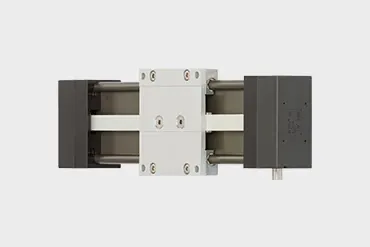

Basic series: this series is driven by a lubrication-free linear guide with a (black) neoprene toothed belt reinforced with glass fibres.

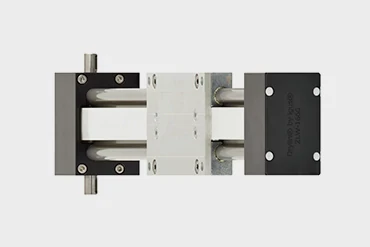

**Standard series:**the lubrication-free linear module is also driven by a toothed belt made of steel-reinforced polyurethane (white). The deflection shaft and drive pulley (single-piece) are made from coated steel.

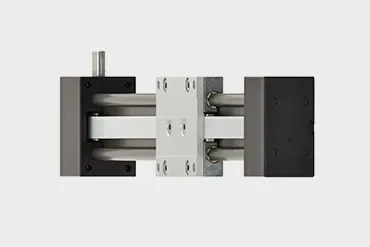

econ series: This econ series with toothed belt was developed for the fast positioning of light loads. Due to the compact design and the lightweight aluminium and polymer combination, the econ version for toothed belt axes is the perfect alternative to self-made solutions.
Would you like more information about the drylin® belt drives? Our experts will be happy to get in touch with you.
Basic/ Standard
In just a few steps to the harnessed drive system
With the online configurator for the drive technology you will receive the suitable drive technology system based on your requirements. You also have the option of requesting or ordering both motors and other accessories, such as the motor control system.
- Fast and easy configuration
- Optional accessories
- Detailed parts list
- Fast delivery
Linear accessories
- Accessories for manual positioning and format adjustment
- Assembly and fastening options

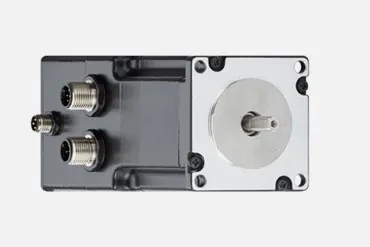

- Stepper and DC motors for electrical drive
Configure your custom linear system online
- Customise your drive system in just a few steps
- Optional configuration of an individual drive pin
- Automatic generation of a 3D model of the linear system
- Export of the linear system in many different 2D and 3D formats
- 2D dimensional drawing of the module as a PDF
- Download parts list as PDF file
- Add to shopping cart and submit order or request a quotation online
