Ball bearing conveyor rollers

While the requirements in the area of material handling, especially intralogistics, are increasing continuously, the demands placed on the materials used due to the goods to be transported are also rising. Given the increasing speed, one important element of drive systems must always function reliably: the bearing. There are different types of guide roller: driven guide rollers made of steel, types made of stainless steel or plastic. They are used to establish a rolling contact between the conveyor frame and the conveyor belt. The guide rollers supplied by igus® can be used flexibly and, depending on the requirements, can be fitted with different deep groove bearing bearings. The igus® conveyor rollers are not only used in the area of material handling but also in labelling machines, the packaging industry and the food industry, where they are sometimes used as guide rollers.

Visit the shop

Conveyor roller options

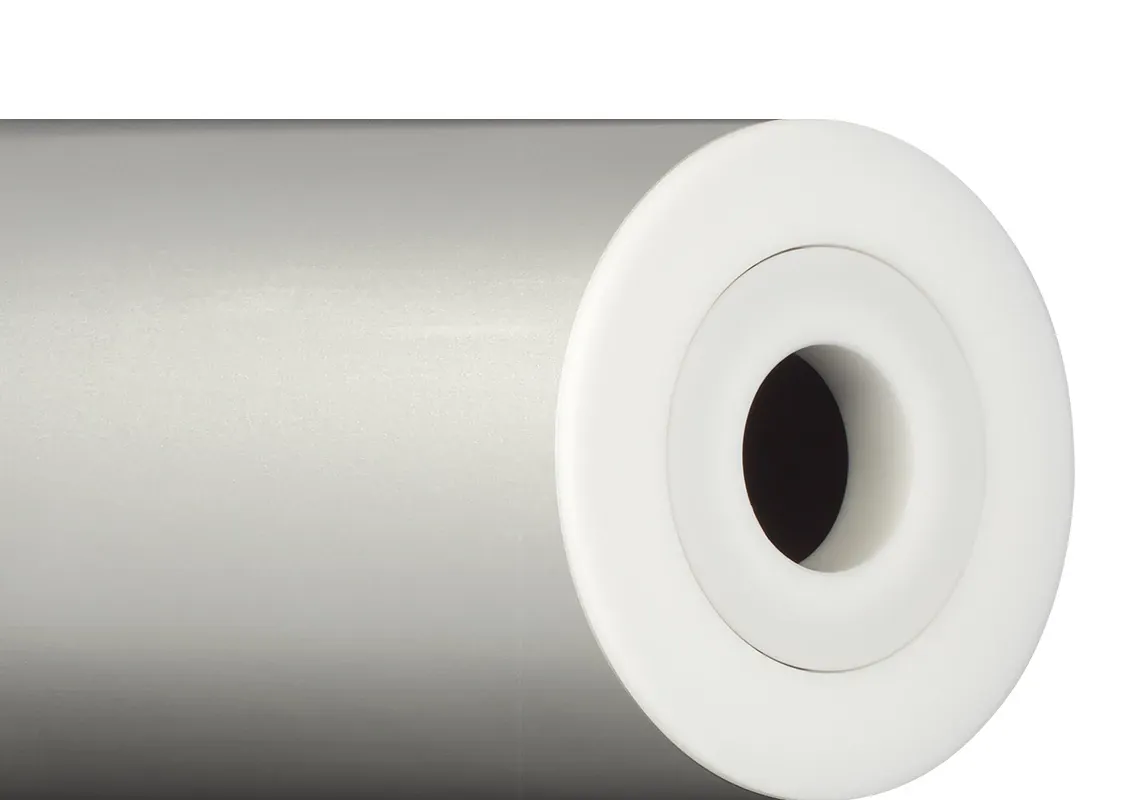

Aluminium conveyor roller

Inner Ø: 6, 8, 10, 12, 15, 17, 20mm
Outer Ø: 20, 30, 38, 50, 60mm
Length of the roller: 50-500mm
Cage material: Polyamide (PA)

Visit the shop

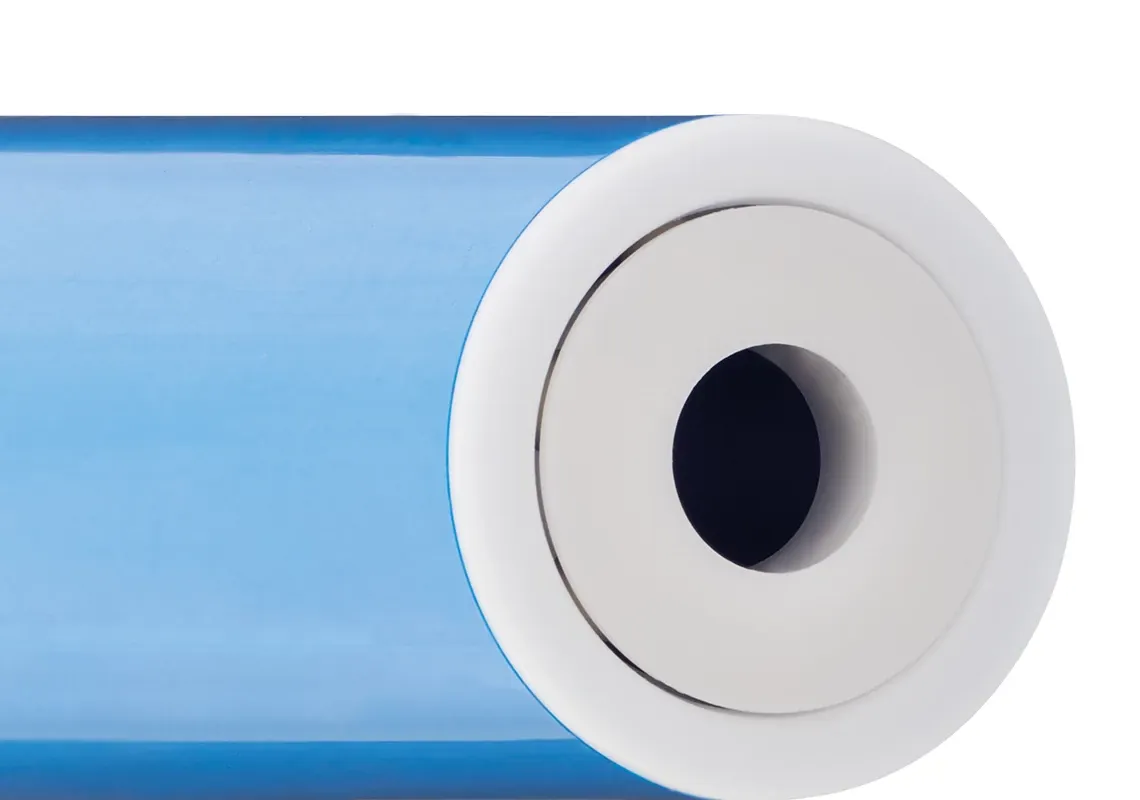

Guide roller made of PVC plastic

Inner Ø: 8, 10, 12, 15, 17, 20mm
Outer Ø: 30, 40, 50, 63mm
Length of the roller: 50mm
Confirmed food conformity

Visit the shop

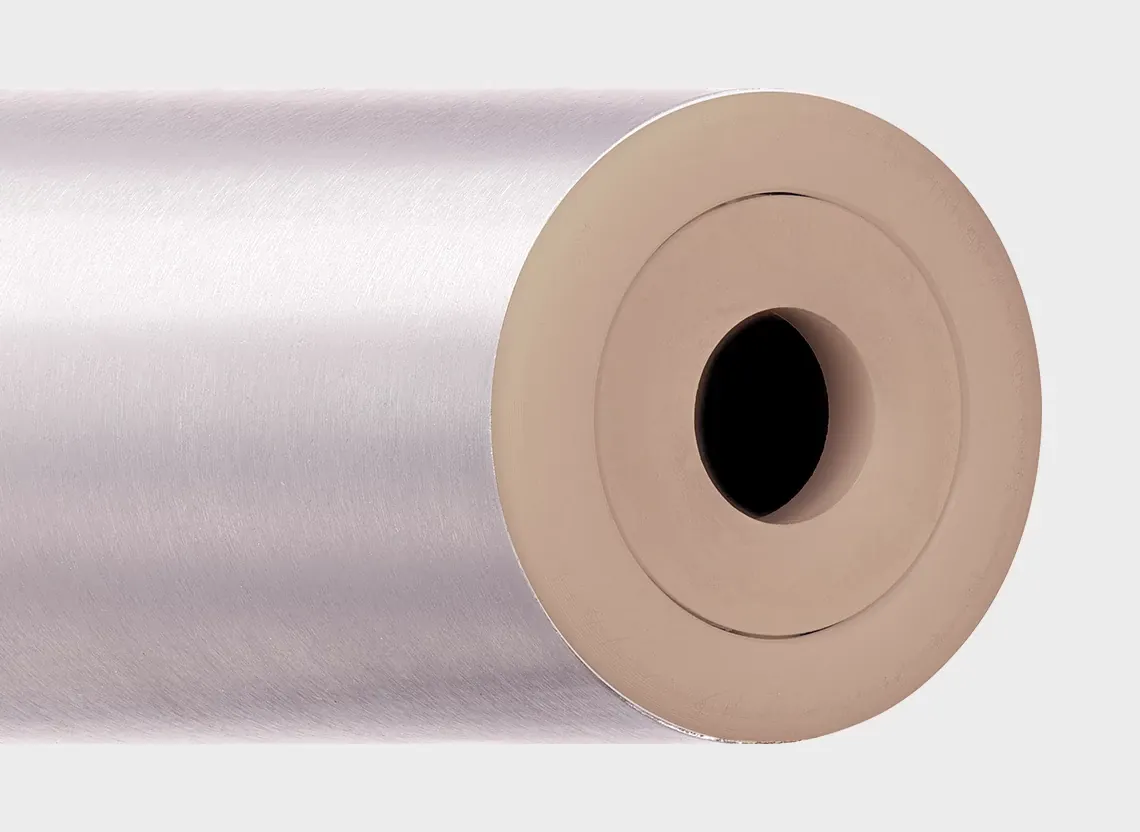

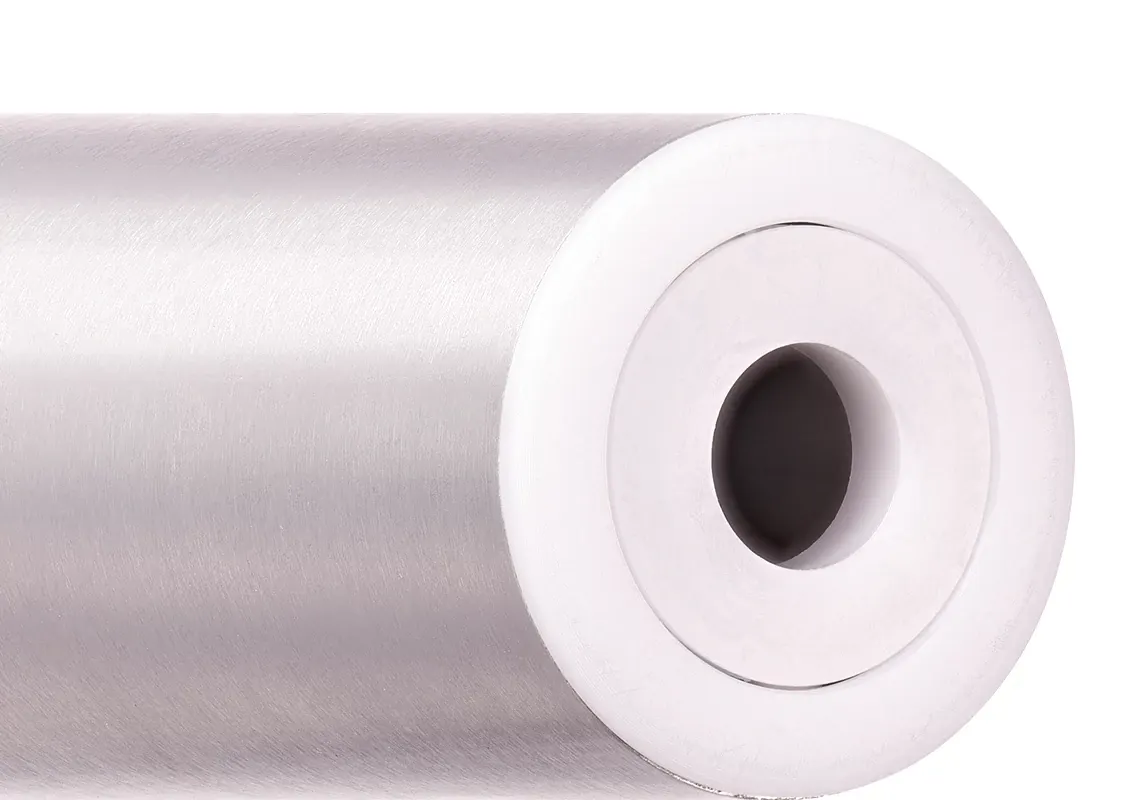

Guide roller made of stainless steel

Inner Ø: 8, 10, 12mm
Outer Ø: 30mm
Length of the roller: 50mm
FDA-compliant components

Visit the shop

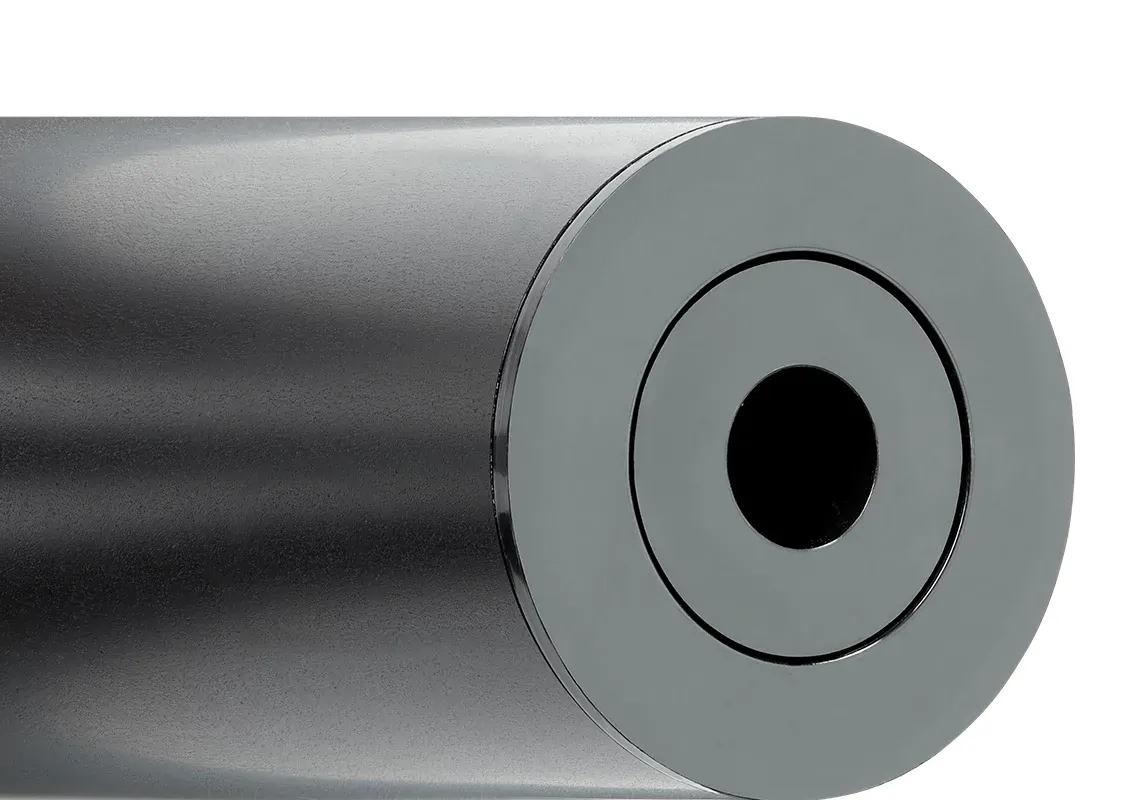

Black hard anodised aluminium roller

Black hard anodised xiros® guide roller made of aluminium

Inner Ø: 6, 8, 10, 12, 15, 17, 20mm
Outer Ø: 20, 30, 38, 50, 60mm
Length of the roller: 50mm

Visit the shop

Metal-free PVC roller with glass balls

Metal-free xiros® guide roller made of plastic (PVC)

Inner Ø: 8, 10, 12, 15, 17, 20mm
Outer Ø: 30, 40, 50, 63mm
Length of the roller: 50mm

Visit the shop

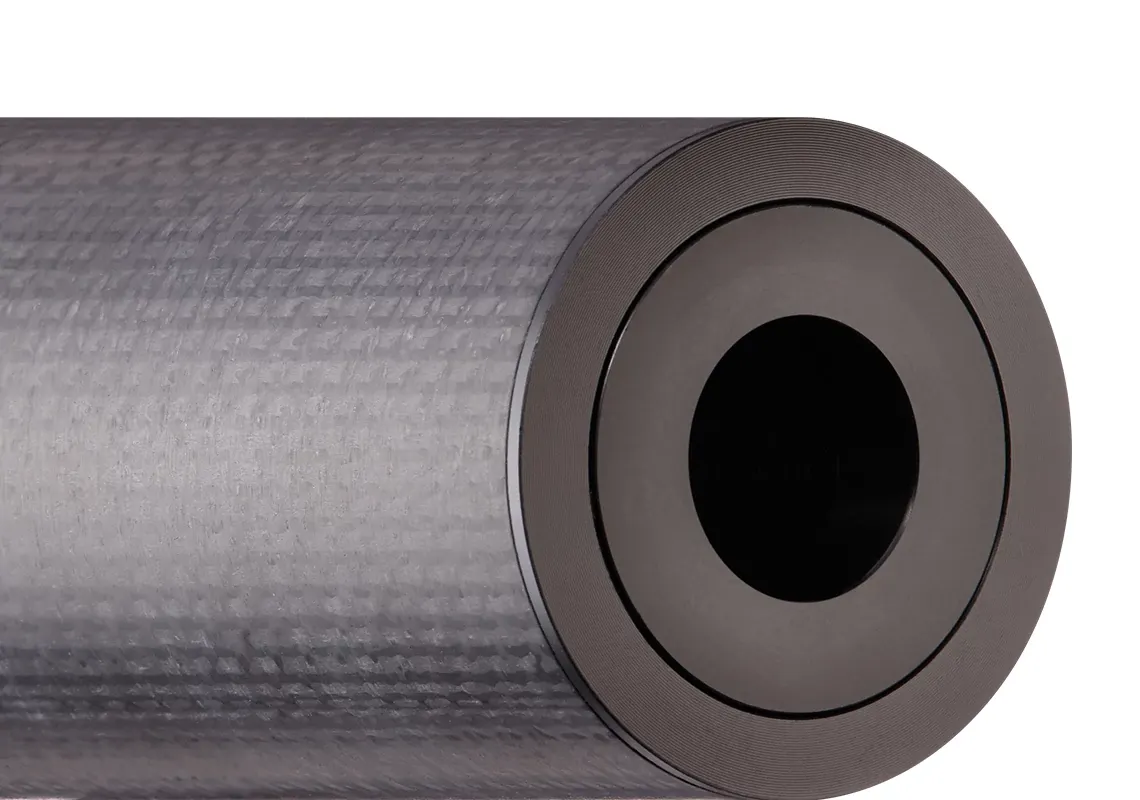

Carbon belt roller

Inner Ø: 20mm
Outer Ø: 50mm|100mm
Length of the roller: 50mm

Visit the shop

Configure conveyor rollers online

Configure and order guide rollers online

With our online tool for configuring your guide roller, you will receive the right product in just a few steps after entering your requirements. Simply enter the outer and inner diameter, determine the load and load case as well as the temperature of the application.

Display of price and delivery time for the selected part
Easy access to online catalogue and CAD data
Easy transfer to shopping cart
No minimum order quantity
Order your free sample
Save, download or reset your individual configuration

Configure your guide roller

Where are guide rollers used?

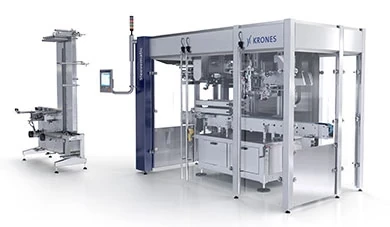

Aluminium belt guide rollers in Krones labelling machine

xiros guide rollers in labelling machines

Smooth running and 100% lubrication-free are major advantages
Instead of metal solutions made of steel, which were too heavy and had to be lubricated, this labelling machine uses plastic ball bearings in up to 36 guide rollers. In this system, they ensure film transport in the form of a film deflection. Service life was increased and maintenance costs were lowered. Up to now, the polymer ball bearings have ensured that the guide rollers operate quietly and that the machine performs its task without interruption.

Conveyor Rollers in industrial systems

The stainless steel bearings used so far were extremely susceptible to problems and required intensive maintenance, since they had to be lubricated and became worn quickly due to frictional forces. Since conversion to lubricant-free plain bearings from igus® the rollers have been running almost problem- and maintenance-free.

Take advantage of the benefits of our guide rollers:

Lubrication-free

The plastic ball bearings used are lubrication-free and require no further lubrication with grease. As a result, the guide roller does not have to overcome the resistance of the lubricant and always impresses with its smooth running and maintenance-free operation.

Direct from the manufacturer

xiros® plastic ball bearings are the result of our own efforts and work. You not only benefit from an immense variety directly from the manufacturer, for example compared to solutions as heavy steel, but also from years of experience from the industry's largest test laboratory for motion plastics.

food-compatible

Our guide rollers can be used without hesitation in equipment that handles food and beverages. They are resistant to chemicals such as fatty acids or grease. This has been attested by the European Commission with VO 10/2011/EU based on VO 1935/2004/EG.

Choosing the right conveyor roller

Our free white paper will help you select the ideal conveyor roller for your individual application.

Seven tips for choosing the right conveyor roller

There are several factors to consider when selecting conveyor rollers. First of all, load-bearing capacity is a decisive criterion. The conveyor roller must be able to safely bear the weight of the transported goods without deforming, sustaining damage or causing downtime. The durability of the conveyor rollers is also of great importance. They should be made of materials with high wear resistance to ensure a long service life.

Rolling friction must also not be ignored. The conveyor rollers should have an optimum surface finish to ensure sufficient grip on the conveyor belt or the transported goods. This contributes to the stability and safety of the conveying process. Ease of installation and maintenance also play a role, as downtimes of the entire conveyor system are thus avoided.
