Flexible Cables for Moving Applications

Browse chainflex® flexible cables

Cross-section of CF product tile updates cable with many copper conductors.

Control cables

  • 300/500V designed for flexible movement
  • 6 outer jacket variations available
  • CY or YY available depending on EMI requirements
Circular cutaway of a CF cable showing multiple insulated cores inside a purple sheath.

Bus cables

  • Heavy duty bus cables rated for industrial communication
  • High quality overall shield
  • 6 outer jacket variations
Cross-section of a CF cable with four insulated copper conductors.

Motor cables

  • Available in single core or multicore variations
  • Shielded or unshielded options depending on EMI requirements
  • 7 outer jacket variations
Cross-section of a CF cable showing multiple coloured cores inside a round sheath.

Data cables

  • Constructed as layered cores, twisted pairs or pair shielded designs
  • High shielded coverage ensuring EMC performance and consistent signal transmission
CF product tile updates shown as a circular cross-section of a cable with multiple coloured cores.

Encoder cables

  • Built to OEM/ industry feedback standards
  • Bend radii as tight of 6.8x outer diameter
  • 5 different outer jackets with high quality shielding for minimal signal loss
CF product tile update showing a cross-section of a cable with multiple cores.

Servo cables

  • Overall shield and optional pair shielding for high EMC protection
  • Optimised for high currents and tight dynamic movement
CF product tile with a cable cross-section showing three blue conductors.

Fibre optic cables

  • Designed for long travel length while ensuring high speed transmission
  • EMI immunity
  • Plastic FOC , glass single mode and glass multimode variations
Cutaway view of a CF cable with four insulated conductors.

Robot cables

  • Cables can withstand ±180°- ±360° per 1 m.
  • Uses tinned copper rope shielded to resist wear from friction and internal cable movement
  • Tested for millions of cycles in real world applications
CF product tile update showing a cable cross-section with coloured cores.

Special cables

  • More commonly found in requirements for niche applications
  • Variations like thermo cable, top drive, axis 7.
  • Industry known cables designed for dynamic movement

Flexible cable application examples

Pick and place machine

Pick-and-place machine for automated assembly of components and reels.

Large machining centres

Machining centre with moving cable carrier in an industrial hall.

Mechanical engineering

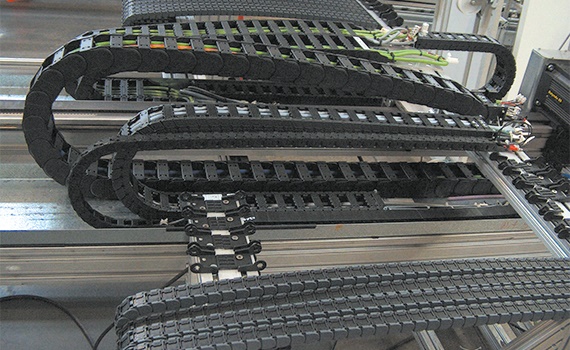

Cable guide for machine tools with several energy chains.

Ship unloader

Gantry crane over water with a yellow steel frame and a red-marked guide roller.

More applications

Chainflex cable protection tube above a wave with a ship in the background.

Frequently asked questions about flexible cables

  • Optimised conductor design – stranded conductors are laid with a short pitch length to reduce internal stress and extend service life in motion.
  • Specific core design- Depending on the core configuration, the cores are either layered, bundled or placed in twisted pairs around a centre element, ensuring stability and preventing corkscrewing or untwisting in an e-chain.
  • High quality insulation and jacket materials – We only use tested, high performance insulation materials with different property variations, PVC, PUR, TPE and iguPUR are used, tailored to the environment. Things like oil-resistant, cold flexing, UV and temperature resistance.
  • Pressure extruded inner and outer jackets – Unlike standard cables where the outer jacket is often loosely applied, our pressure extruded jackets bond tightly to the core bundle, preventing abrasion and increasing cable strength.
  • Testing, testing, testing – Every chainflex® cable undergoes rigorous electrical, mechanical and quality checks before leaving production.
