Energy chain E6.35 series | Extremely low vibration, cleanroom suitable, lids removable along the inner and outer radius | inner height: 35mm

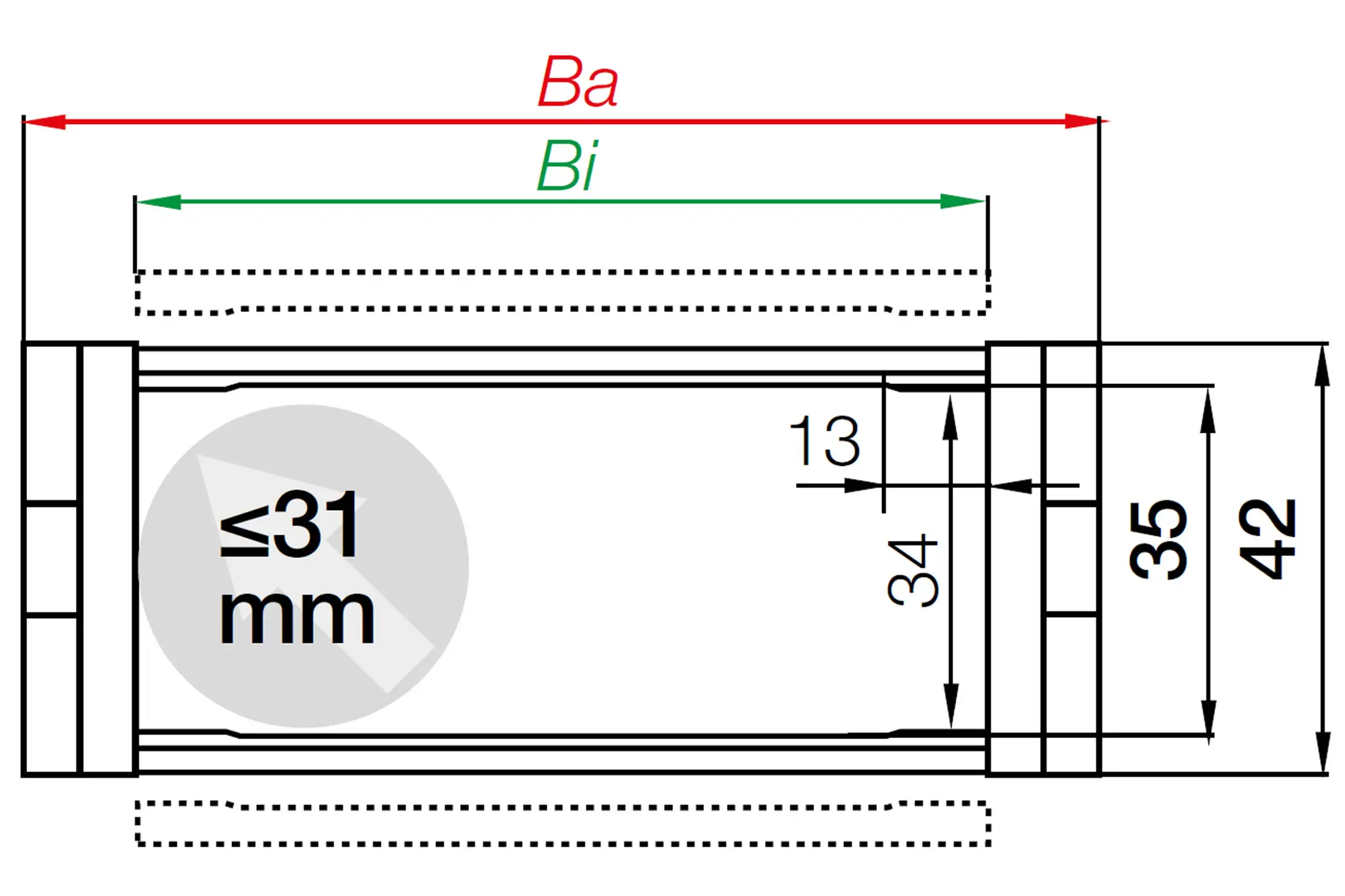

Inner height hi: 35mm
Inner width Bi: 30 - 140mm
Bend radii R: 55 - 150mm
Pitch: 25mm
Low noise from 37 dB(A): small pitch for low noise, smooth running
Long service life: low vibration, high strength
Dynamic: high speeds and accelerations
No wear: polymer spring - no pin and bore connection

Item no.

E6.35.030.055.0

Inner width [Bi] [mm]

Bend radius [R] [mm]

The E6 system offers numerous advantages in addition to long life. It provides extremely quiet, low vibration operation. The ultra-low noise levels have been confirmed in a recent report by the Rheinland Technical Inspection Agency.

Low noise from 37 dB(A): small pitch for low noise, smooth running
Long service life: low vibration, high strength
Dynamic: high speeds and accelerations
No wear: polymer spring - no pin and bore connection

Up to 4 years guarantee: Guaranteed service life this series according to the guarantee conditions. Further information: Guarantee for energy chains

Certificates and standards

When to use it?

When an extremely quiet, low vibration energy chain with an inner height 35mm is required
For very high speeds and accelerations
Inner width of up to 140mm
For unsupported lengths up to 1.9m and fill weights up to 6kg/m
For high push-pull forces
For small bend radii
For minimal abrasion, e.g. Cleanroom

When not to use it?

With only limited suitability for side-mounted applications: E4.32 series
For Reverse Bend Radius RBR: E4.32 series
For extremely high fill weights: E4.32 series
For heavy dirt exposure: E4.32 series
When an enclosed e-tube is required: R58 series

Unsure whether it fits?

Up to 4 years guarantee

We offer a guarantee of up to four years on energy chains.
