Linear housing for W profile rails

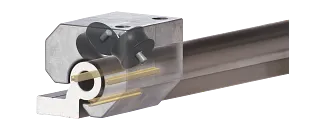

linear housing for profile rails

drylin® W linear housing for profile rails enable extreme flexibility in terms of technical design of linear guides. Whether on single or double rails, individually adjustable or preloaded – igus® enables the reality of individual construction ideas for linear guides. The maintenance and lubrication-free pillow block moves smoothly over the rails during dry operation. By using sliding surfaces made of tribologically optimised high-performance polymers, the linear housings are characterised by special robustness and resistance to external influences such as chemicals, heat, water, dirt and shock loads.

Visit the shop

drylin® W housing options

Round or square linear housing

linear housing
  • Suitable for round or square drylin® W profile rails
  • For variable distances and systems at right angles
Visit the shop

Manual bearing alignment

adjustable housing
  • "Turn-to-fit" function
  • Suitable for all round drylin® W profile rails
  • Different liner materials available.
Visit the shop

Pillow block with spring preload

Pillow block with spring preload
  • Configurable with different spring strengths
  • Precise positioning, rattle-free and quiet
  • With pre-load
Visit the shop

Linear block with manual clamp

housing with manual clamp
  • Fast positioning
  • For manually adjustable clearance
Visit the shop

Tandem linear housing

tandem housing
  • For twice the guide length
  • Quick and easy assembly without alignment
Visit the shop

Linear roller bearings/hybrid bearings

  • Low displacement forces
  • Click here for more on roller bearings
Visit the shop

Configure your complete system

You can use the drylin® linear guides expert to quickly and easily configure an individual linear guide for your application in just five steps.

Configure your system
config banner

Frequently asked questions about drylin® W housings

What are drylin® W linear housings?

drylin® W linear housings are pillow block housings that compliment the drylin® W linear profile rails.

Where would you use drylin® W linear housings?

Any application such as handling devices or linear actuators that require smooth running linear systems.

Why would you use drylin® W linear housings?

You would use them for smooth operations within a linear system. Applications that require no lubrication and require silent movement.

Linear housing with exchangeable bearing

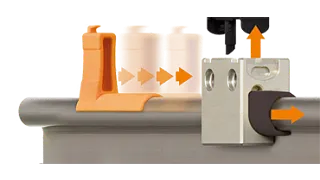

Linear housing for easy bearing exchange

Fast bearing change without disassembly

  • Easy maintenance directly on the rail
  • For round single, double and high-profile rails
  • Including suitable tools for the bearing exchange
Buy linear bearing with exchangeable bearing

Application examples

banner aigro

AIGRIO UP

The weed control robot from AIGRO UP with drylin® W profile rails and linear housing from igus®.

Velolift

MAX Velolift

The MAX Velolift from Rad9 for assembly of bicycles with the drylin® W double rail and linear housing from igus®.

Fiedler

Municipal vehicle

The municipal vehicle from Fiedler with the drylin® W double rail WS and drylin® W pillow block from igus®.

banner

SLIDE

The SLIDE from InGymNeering consists of the drylin® W profile guide and the drylin® W pillow block from igus®.
